Project Conductors Database

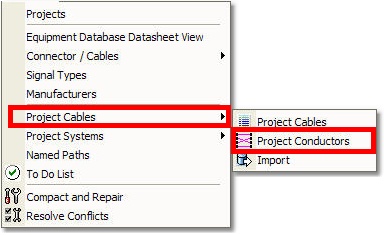

Menu: Databases>Project Cables>Project Conductors
Default keyboard shortcut: None
Function:
Project Conductors database is linked to the Project Cables database and is only created if the Use Pinouts setting is true. The Use Pinouts setting can be turned on and off in the same project.
The Project Conductors data is fed by the Pinouts database as a cable number is assigned and a Pinout is selected.
Project Conductors Database Field Descriptions
Field Name |
Description |
CableID |
Unique ID. Do not edit. |
Cable Manufacturer |
Cable Manufacturer |
Cable PN |
Cable Part Number |
Color Code |
Color Code for the Conductor |
Conductor |
The Conductor number |
Conn1 |
The source connector |
Conn1 Jumpered To |
Comma delimited list of jumper on Conn1 |
Conn2 |
The destination connector |
Conn2 Jumpered To |
Comma delimited list of jumper on Conn2 |
Created By |
Who made it. |
Current Project Revision |
Inherited from the Global Projects database |
Detail Sheet |

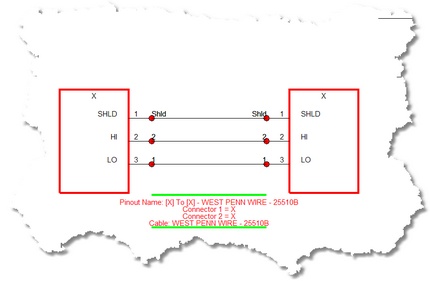

Pointer to a sheet with the graphical detail of the pinout:
|
Function 1 |
The function assigned to the pin on Conn1 |
Function 2 |
The function assigned to the pin on Conn2 |
Pin 1 |
The pin number on Conn1 |
Pin 2 |
The pin number on Conn2 |
PtoPID |
Named Pinout |
Notes |
For you. |
Termination Method 1 |
Termination for Conn1. ie. solder, crimp, insulation displacement. |
Termination Method 2 |
Termination for Conn2. ie. solder, crimp, insulation displacement. |
User1 |
It's up to you. |
User2 |
It's up to you. |
User3 |
It's up to you. |
User4 |
It's up to you. |
|

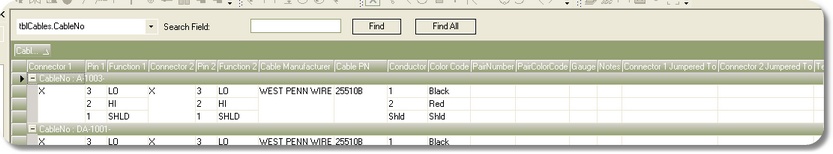

This grid can be exported to MS Excel. Projects>Import/Export>Export to Excel: |
