Corner

 Previous pageReturn to chapter overviewNext page

Applies To:

All product levels

Related Settings:

None

Corner

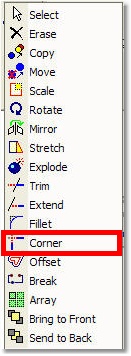

Menu: Modify>Corner

Default Keyboard Shortcut: None

Use the Corner function to either extend two lines to their intersection or to erase lines that extend past their intersection.

Note: only applies to Line entities.





Before Corner

After Corner





After you start the command, follow the Command Line prompts to complete the command.

Escape or right click to exit.
