Many to One

Command Line Shortcut: ' User Permissions Level: All Product Level: All This will discuss drawing a Many to One cable.

---

Before You Start

You will need to have a drawing open with at least 2 pieces of equipment in your drawing.

Drawing a Many to One Cable

Step	Image

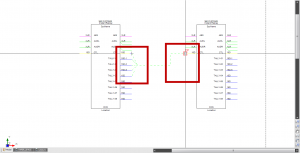

1. With your drawing open, select the Draw Cables tab.	Draw Cables Tab
