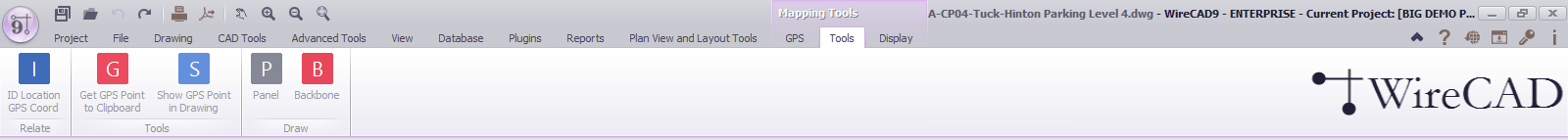

<< Click to Display Table of Contents >> Navigation:  Reference > Ribbon Tabs and Dialogs > Ribbon Tabs > GPS Mapping Tools For Drawings > Tools

Active only when the current environment is a drawing.



Relate Section

ID Location GPS Coord: Associate a Locations table record with a specific GPS coordinate point.



Related Topics:

•How To: Associate GPS LAT, LON with your Locations Map tool version

•How To: Associate GPS LAT, LON with your Locations DWG version.

•ID GPS Locations dialog reference.



Tools Section



Get GPS Point to Clipboard: Allows you to select a point in the drawing. Once a point is selected its GPS lat, lon are copied to the clipboard as text. You can paste this data into any other application as text.



Show GPS Point in Drawing: Prompts for the GPS Lat,Lon to show. Enter the Lat,Lon in the command line. A location marker will be placed and zoomed into view.



Draw Section



Panel: Place a new SysNamed Panel or other equipment at a specific location within the drawing using the GPS Location markers as the location for the equipment. Requires that at least one Location Marker is displayed. For more information on displaying Location Markers see this topic.



Backbone: Draw a new Backbone between two panels. The panel markers must exist in the drawing.



Related Topics:

•How To: Show Panel Markers in your Drawing.

•How To: Draw a Backbone in your Drawing.
