Mapping Tools > Tools > ID GPS Locations
Alternately from the Map tool:
Tools > ID GPS Locations

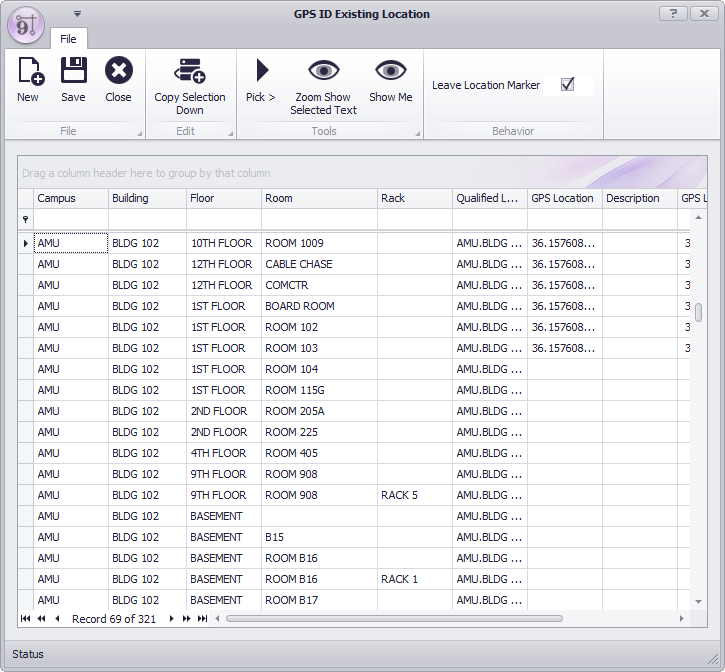

This form is used to pick points from a drawing or map and associate them with the select Location record.
This tool only works with DWG drawings that have been calibrated to the GPS coordinate system or with the Map tool.
New: Open the New Locations dialog.
Save: Commit your changes to the Locations table of the project database.
Close: Close this form without saving.
Copy Selected Down: Copy the data from the top cell(s) down overwriting any data in the cell(s) below.
Pick >: Dismiss this dialog and select a point from the drawing or map. The GPS coordinate will be entered in each of the selected rows.
Zoom Show Selected Text: (drawings only) text entities in the drawing that match the text of the currently focused cell.
Show Me: Finds the GPS coordinate in the drawing and places a Location Marker. Then zooms the marker into view.
Leave Location Marker: Sets whether a location marker as determined by the settings is placed at the pick point.
