Menu: File > Print



Explanation

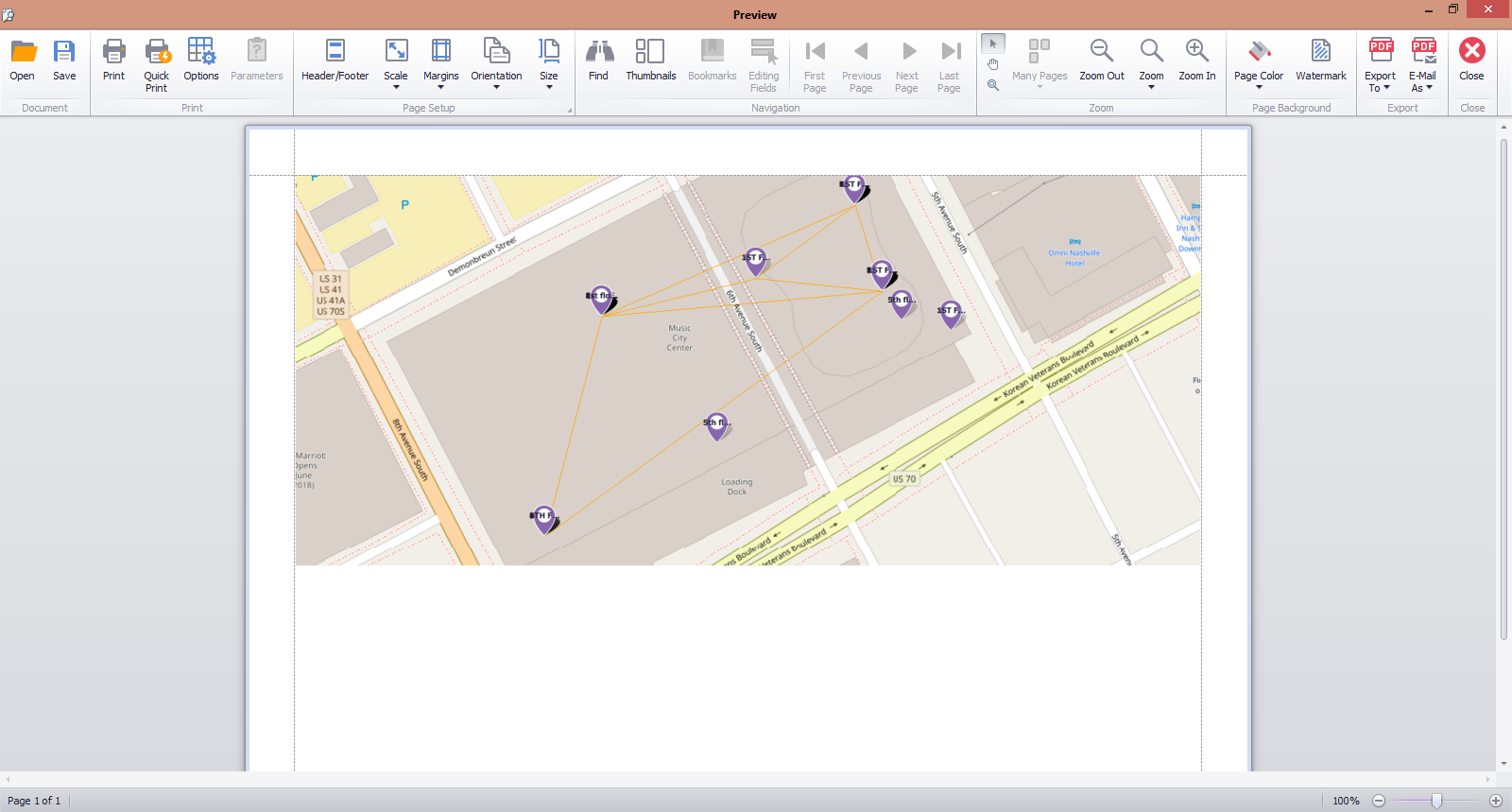

The print preview dialog can be used to send the current map view to the printer or exported to several file formats.



Controls

Document Section

Open - Open a saved *.prnx file for printing.

Save - Save a *.prnx file for printing later.

Print Section

Print - Open the Printer dialog to set the current printer, page size, number of copies, etc.

Quick Print - Do it now.

Options - Open a dialog to set the image fit properties and what visual elements to include in the printed output.

Header / Footer - Open a dialog to set the document header and footer.

Page Setup Section

Scale - Set the scale of the document or fit it to a number of pages.

Margins - Set the document margins. Alternately you can drag a margin indicator line to resize it.

Orientation - Set portrait or landscape mode.

Size - Set the page size. Sizes are based on the current printer.



Navigation Section

Find - Find text within the document.

Thumbnails - Show the Thumbnails tool panel.

Page Navigation - First, Previous, Next, Last. Move around the pages.





Zoom Section

Mouse Pointer Tool - Enable the mouse pointer.

Pan Hand Tool - Enable the panning tool.

Magnifier Tool - Enable the magnifier tool.



Many Page Selector - Set the number of pages in the viewer.

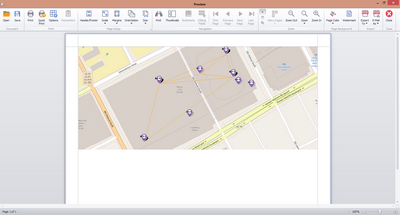

Zoom Out - Zoom the display out.

Zoom Numeric - Zoom to a specific numeric percentage value.

Zoom In - Zoom the display in.





Page Background Section

Page Color - Set the color of the background.

Watermark - Open a dialog to set a watermark for the document. The watermark can be text, image, or both.





Export Section

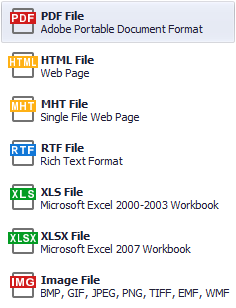

Both the [Export To] function and the [Email As] functions support the following formats:
