Displays the available Terminals sorted by Terminal style (Jack,Terminal, Pointer).

Note: Terminal file suffixes determine whether the file will be displayed in this window. Files stored in the %BLOCKS%\WireCAD Terminals support path having a _SD.DWG, or _S.DWG suffix will appear in this view.

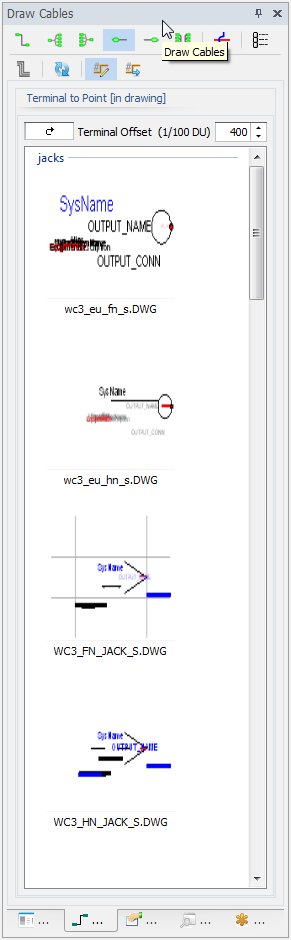

•Terminal, Pointer, Jack, Splice, Adapter Gallery - Displays a gallery of items to click and place in the active drawing.

•Refresh Button - Reloads the galleries.

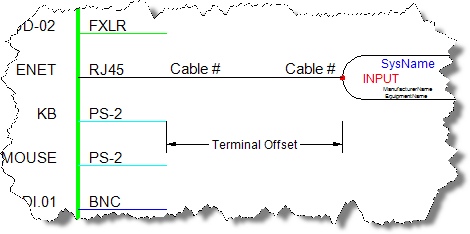

•Wire Length in 1/100 Drawing Unit(DU). - The length of the attaching cable or the terminal offset from the attached port.
