Many-to-Many Cable
Many-to-Many cables behave like a buss. They are a collection of one-to-one cable drawn as a single polyline. When assigning cable numbers the connection point closest to the cursor is used.
See the above descriptions for more information about settings.
Related User Settings - When I double-click a Many-to-Many Cable Assign them All. This setting overrides the default "point-nearest" behavior.
•Count - Source and destination count.

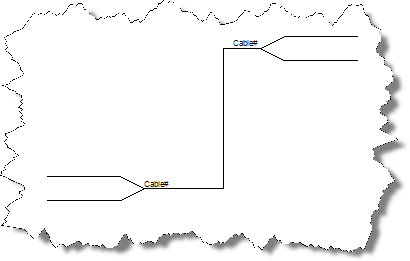

Count = 2
Y feeder
The remainder of the controls have been explained above.
