<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Advanced Topics > Cables Visualizer

Menu: Database>Project Cables>Project Cables Grid

Default command line shortcut: cg

Related Settings:

 See the Settings tab

---

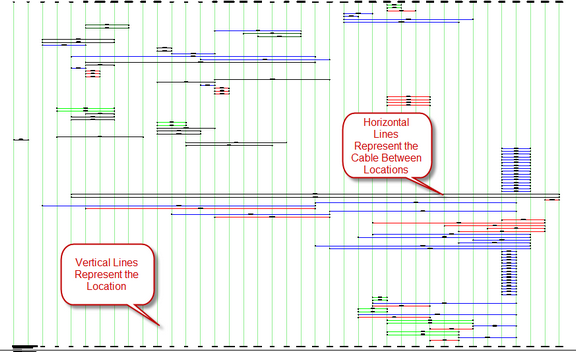

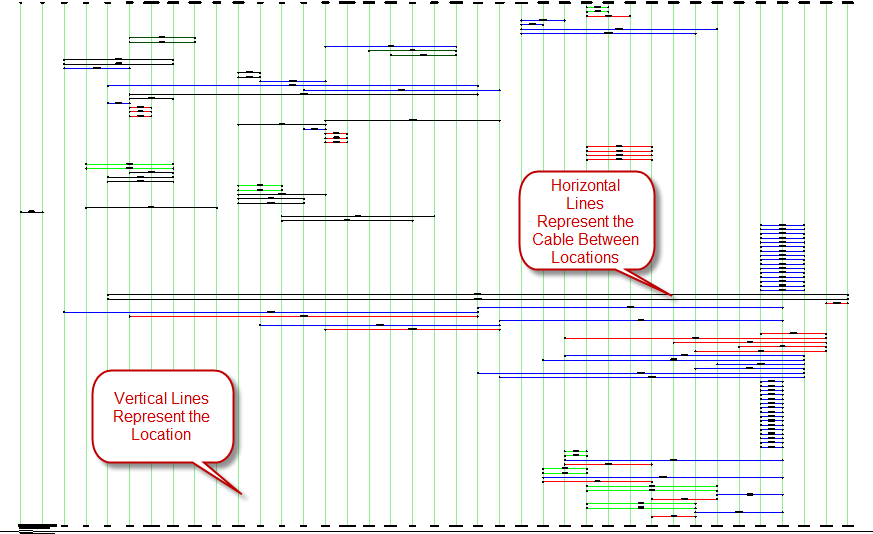

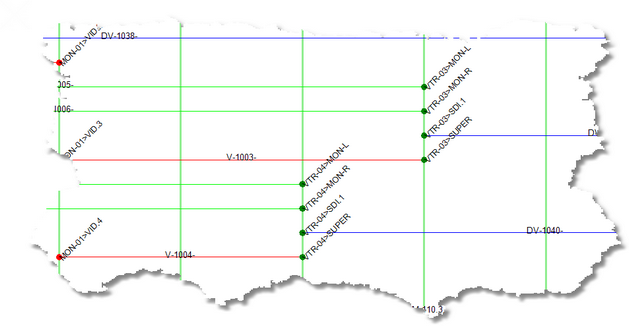

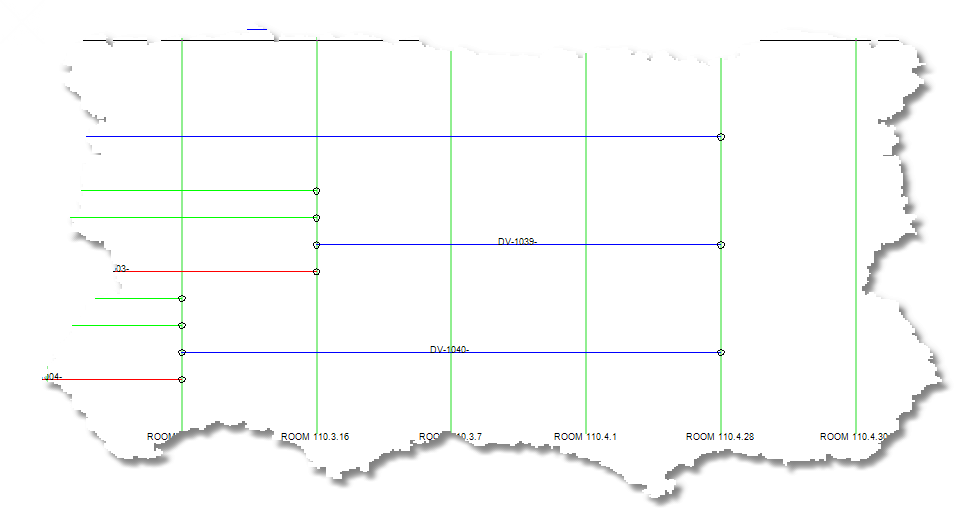

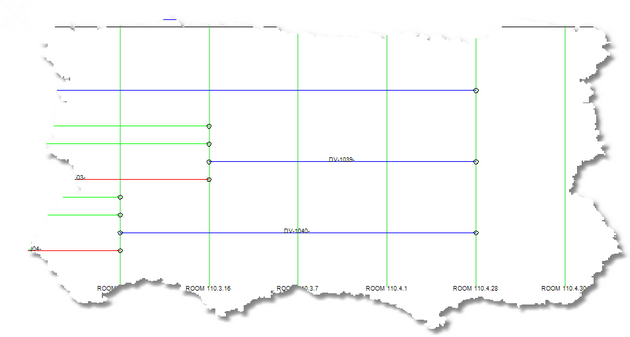

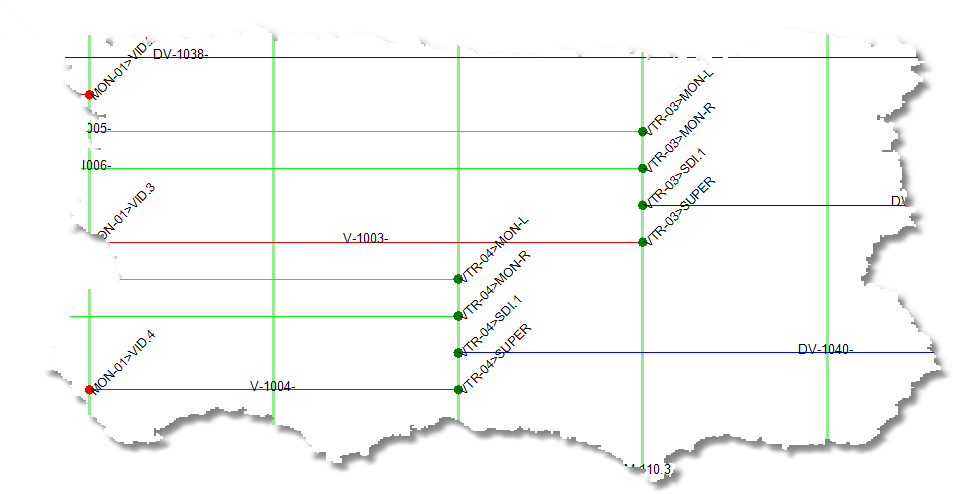

The Cables Visualization tool creates a layered digraph showing the Locations (vertically) and the cables between them (horizontally).

Use this output for:

•Pre-wires.

•Spare inventory.

•General overview.

•Enlighten and amaze your friends.
