<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > CAD Dialogs > Swap Equipment

---

Context Menu with Equipment Insert Selected>Equipment Functions>Swap Equipment

Default command line shortcut: none



The Swap Equipment function allows you to swap Manufacturer, Model, and port data on an existing functional block or concept block.



Applies To:

Functional Blocks

Concept (High Detail) Blocks.



Used For:

Switching from one make/model to another.

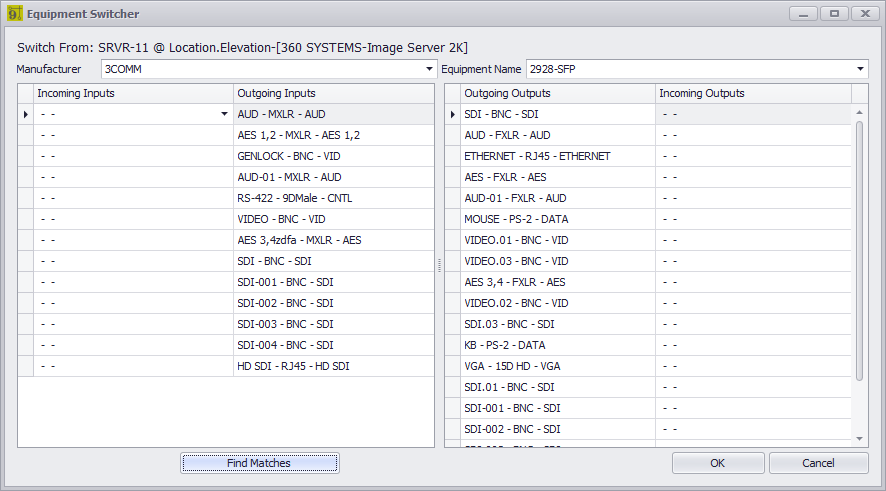

Dialog Options

•Manufacturer - Select the Manufacturer to replace the outgoing device with.

•Equipment Name - Select the Equipment Name / Model / PN to replace the outgoing device with.

•Inputs grid, Outputs grid - Select the ports to replace.

•Find Matches - Matches incoming ports to outgoing ports.

•OK - Do it!
