<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Included Plugins > Find and Replace

Menu: View>Tool Panels - Find

Default command line shortcut: none

Related Settings:

 None

---

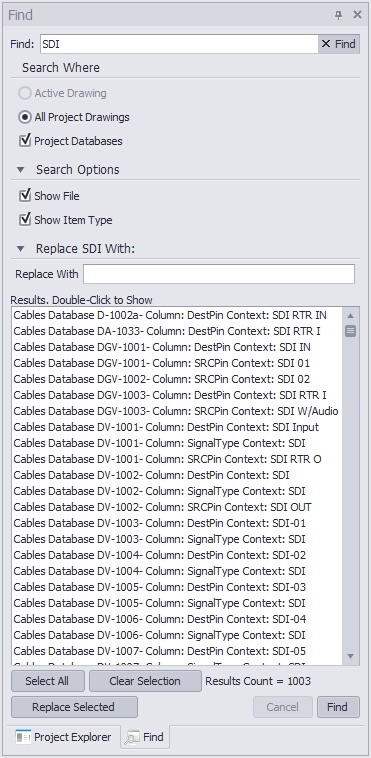

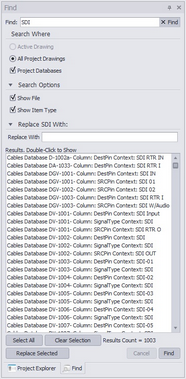

The Find and Replace tool window allows you to search all of the data collections and drawing. You may then replace found text with that of your choosing.



The Find and Replace tool shows you the context in which the text was found. You can select from the results list which items to replace.

•Find - The text to search for.

•[X] - Clear the Find text.

•Search Active Drawing - Only look in the active drawing.

•Search All Project Drawings - Search every project drawing.

•Show File - Show file name if any of the context in which the item is found.

•Show Item Type - Is it a text entity in a drawing or a field in a database.

•[Select All] - Selects all items in the results window.

•[Clear Selection] - De-selects all items in the results window.

•Replace With - The text to replace the found text with.

•[Replace Selected] - Initiate the replacement.

•[Cancel] - Cancels the current search.

•[Find] - Initiate the search.
