Menu: Database>Pinouts
Default command line shortcut: po
Related Settings:
None

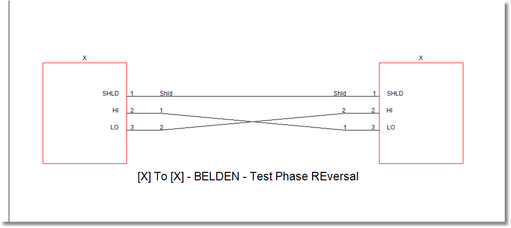

The Pinout utility serves two functions. The first is to generate pinout detail drawings.

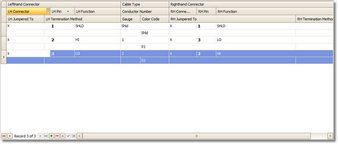

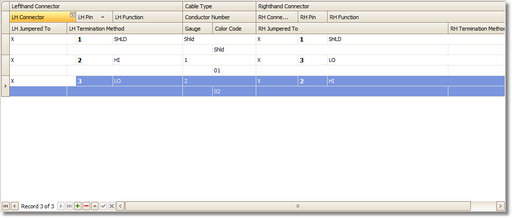

The second is to generate data that can be used in the conductors table under any cable that we wish to attach the data to.
