Drawing > Drawing > Rectangular Array

Commandline: ar



Explanation

Creates multiple copies of objects in a pattern.

With the rectangular array you can create an array defined by a number of rows and columns of copies of the selected object.

First you have to select the objects. Then you have to define number of rows and number of columns of the rectangle, the distance between rows and the distance between columns.

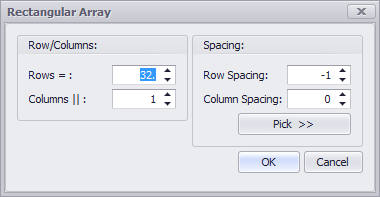

Dialog Options

•Rows - The number of rows in the array including the source elements.

•Columns - The number of columns in the array including the source elements.

•Row Spacing - Row spacing in DU.

•Column Spacing - Column spacing in DU.

•Pick >> - Momentarily dismiss this dialog so you can pick the spacing out of the drawing.
