<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > CAD Dialogs > Purge

---

Drawing > File > Purge

Commandline: purge



Explanation

Remove unused entities from the drawing. Only unused entities and object appear here. For an item to be purgable it must not appear in any drawing space or by used by another other entity or object.

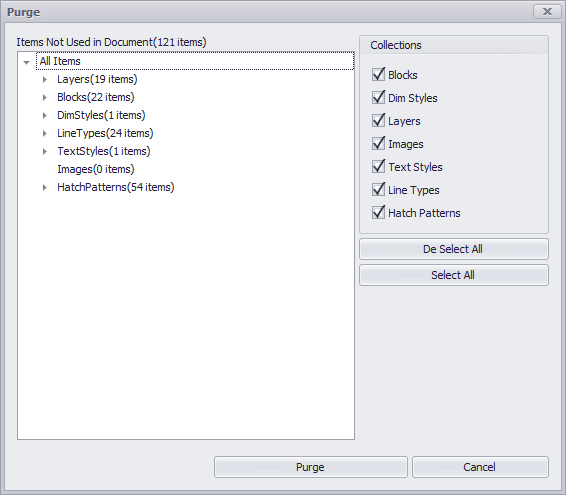

Dialog Options

•Collection Tree - The document collections.

•Collection to Purge - The collections to purge.
