Menu: Drawing > PlanView and Layout Tools > Populate Cables
Default Commandline shortcut: popc
Related Settings:
None
Product Level: ALL
This tool pulls the cables from the Cables table into the drawing. The assumption with this tool is that you will use it after you have done your functional drawings and assigned Cable Numbers and SysNames.
Related Topics
Dialog Options
•Group Cables - Place a single polyline with hash marks to indicate count. All cables that come and go from a single Location or SysName will be grouped. Otherwise a single polyline for each cable will be added.

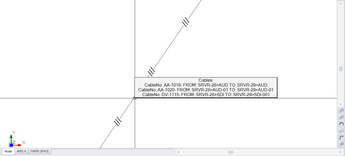

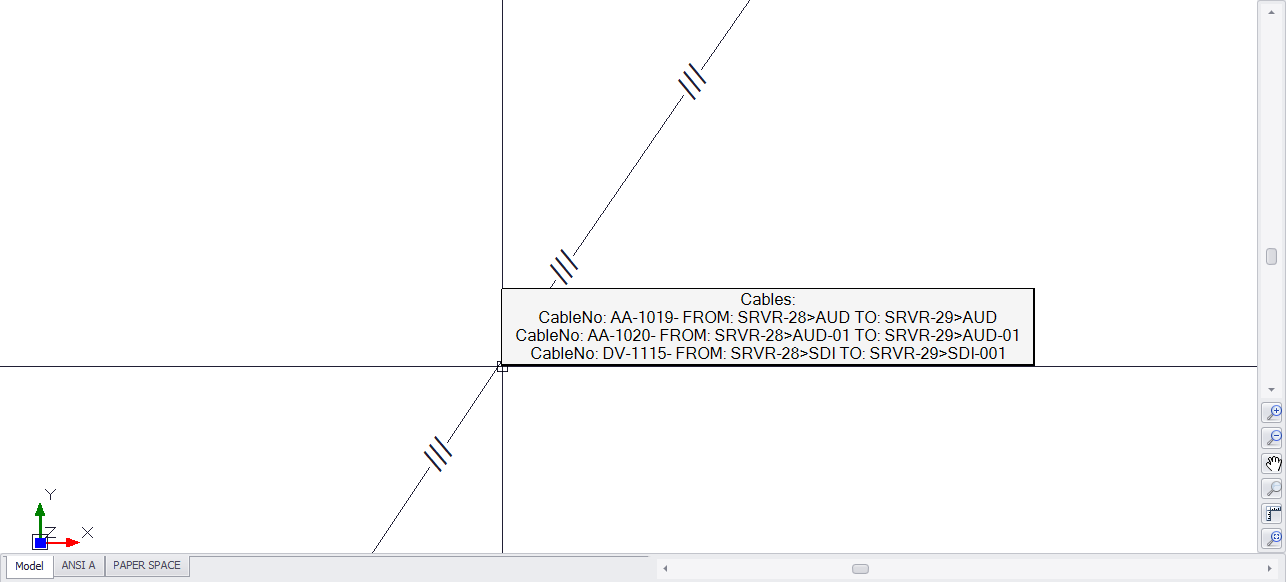

Grouped Cable
•Must connect to equipment in the drawing - The population will fail if the connected equipment SysName is not found. Otherwise the cable will be populated to the drawing based on Location Boundary.
•Ignore cables that come and go to the same location - Keeps the drawing cleaner.
•Flag if other is not found - If both Locations or SysNames are not found in the drawing a flag will be places pointing to the other end.
•Polyline Bulge Factor - The bulge factor to create an arc instead of a straight line.
