Prerequisites

1.SysNamed source and destination equipment placed in the Plan View space or:

2.Source and destination Location Boundaries placed in the Plan View space.

3.Cable data in the Cables table that matches the placed equipment or locations.



Operation



1.Open a plan view drawing.

2.Place Location Boundaries.

3.Place plan view equipment and SysName - Optional.

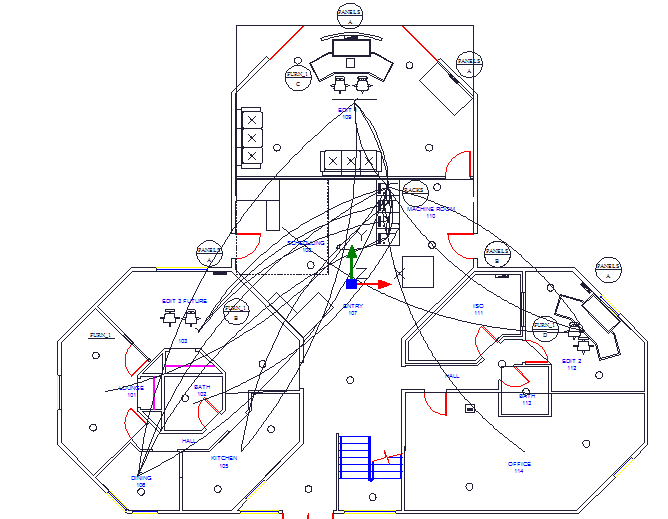

4.Click Plan View and Layout Tools > Populate Cables.

5.Click [OK].
