Drawing > File > New
Commandline: nd
Create a new drawing for the project somewhere in the project\drawings\ folder tree.

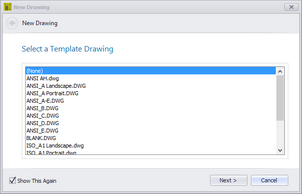

•Select a template drawing. Template drawings are drawings that are placed in the Template Drawings Support Path. They typically contain layouts and page borders, but may also be populated with barebones systems.

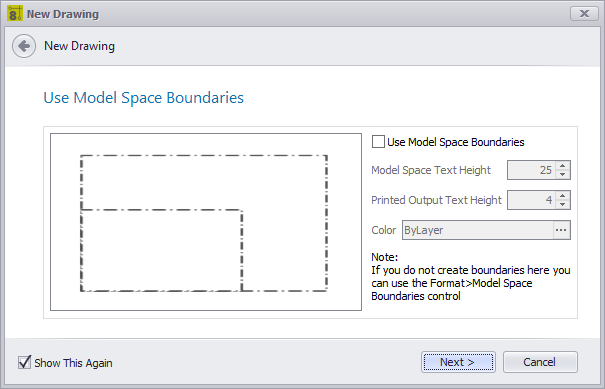

•Set whether to display Model Space Boundaries. These are bounding rectangles based on a scale factor of the Model Space text height used and the desired output text height of the viewport.
Related Topics
•Template Drawings List - Drawings placed in the %TEMPLATEDRAWINGS% support path. Any drawing is a candidate for saving as a template.
•Model Space Boundaries - Your selected template may already have Model Space Boundaries in which case it is unnecessary to include them.
