Manage Security

<< Click to Display Table of Contents >>

Navigation:  Reference > Dialogs > Application Menu Dialogs >

Manage Security

Previous pageReturn to chapter overviewNext page

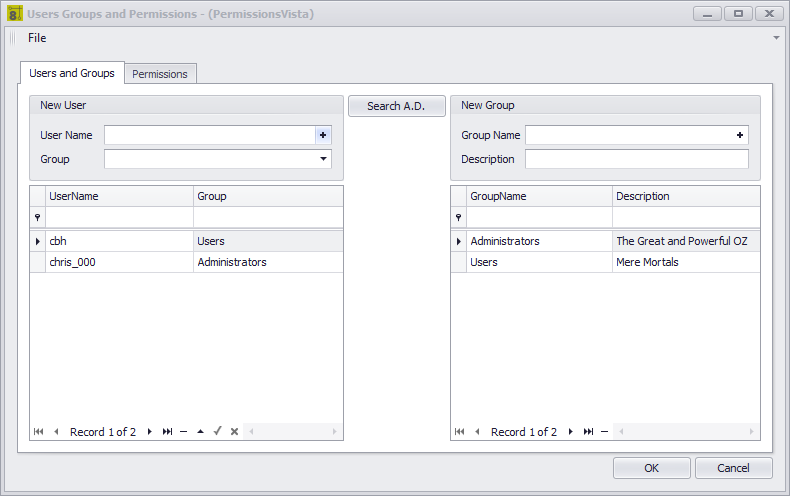

dlg_app_manage_security_users_groups_zoom50


Application Menu > Security Tools > Manage Security ...

Commandline: security



Explanation

Administrators can manage users, groups and permissions. If WireCAD Security is enabled (see related topics). The person that enabled the Security option is the Administrator (the Great and Powerful Oz). All other users will be added automatically to the Users (mere mortals) group. Oz may:

Change the group to which the user belongs.

Create new groups.

Modified group permissions.

Create other Ozes.



So to be clear. Users belong to Groups. Groups have Permissions.



NOTE: No action is required to add a user. They simply need to open WireCAD. If their user profile does not yet exist in the WireCAD Security database it will be add to the Users group.

NOTE: Oz can proactively add users by searching the Active Directory and adding the user to the group of his choosing.



Related Topics

Application Setting - WireCAD Security

Application Setup Wizard



Users and Groups Tab Options

New User - Create a new user and assign to a group.

New Group - Create a new Group and associate Permissions set. After creating the new Group, switch to the Permissions tab and set the permissions on the collections and drawings.

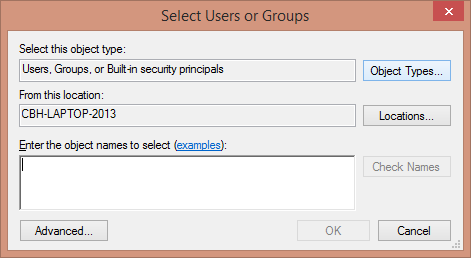

Search Active Directory - Using the standard AD search box.

dlg_app_manage_security_users_groups_ad_zoom50

User Grid - Assign the User to a Group.

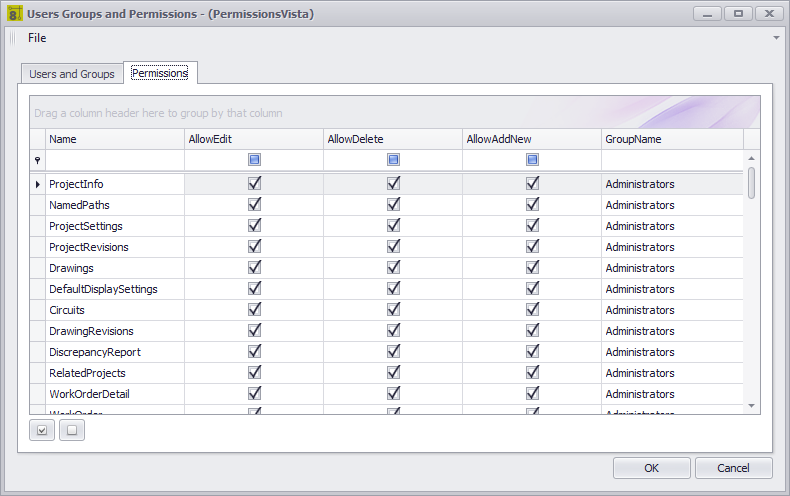

Permissions Tab Options

dlg_app_manage_security_permissions_zoom50


Explanation

Each data collection in WireCAD has Edit, Delete, and Create permissions. This grid enumerates each collection for each group.



Related Topics

Grid Basics



Collection Name - This is usually the table name in the database.

Permissions. - Edit, Delete, AddNew.

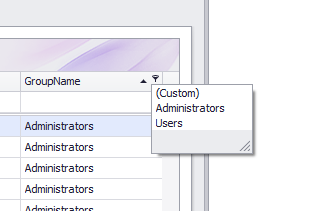

GroupName - You may find it handy to filter by group name then set the permissions for the group.

dlg_app_manage_security_permissions_filter

Select All and Clear Selection.

 snip_select_all_clear
