<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > CAD Dialogs > Images

---

Drawing > Drawing > Images

Commandline: formatimages



Explanation

Embed images in the drawing as well as to edit the properties of those images. The document now contains and Images collection from which images may be inherited throughout the drawing.

Using the Images collection you may now either link or embed an image.

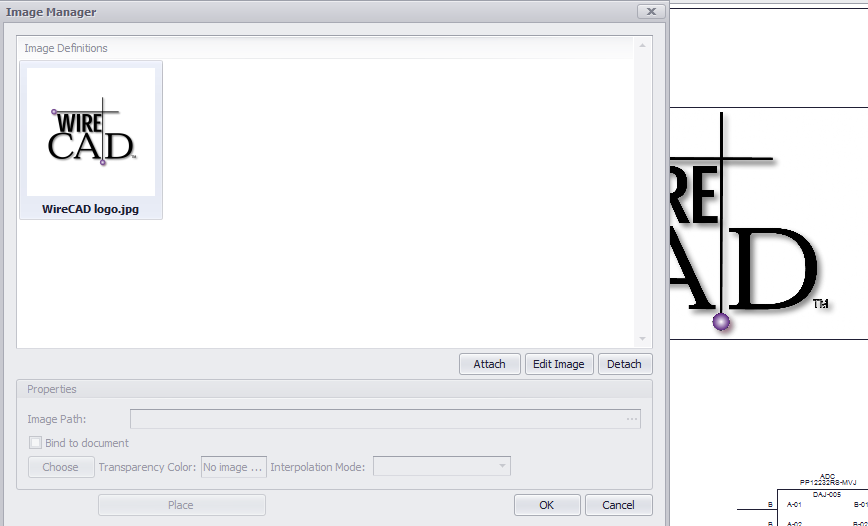

Dialog Options

•Images Gallery

•Attach - Browse to an image file to attach to the document.

•Edit Image - Display the Image Editor dialog for the selected image.

•Detach - Remove the selected image if no instances exist in the drawing.

•Image Path - Path to the linked file.

•Bind to Document - Check this box to embed the image in the document.

•Choose Transparency Color

•Place - Place an instance of the image in the drawing space.
