Drawing > Drawing > Groups

Commandline: formatgroups



Explanation

Create groups of entities in order to better organize your drawings. Groups can be named and described as well as disabled and edited later.

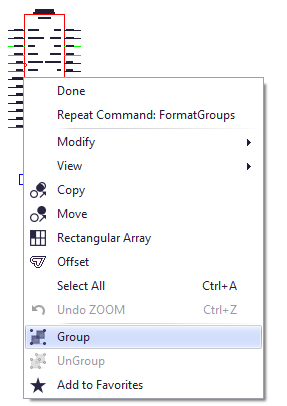

To create a Group select some entities and right-click then click Group

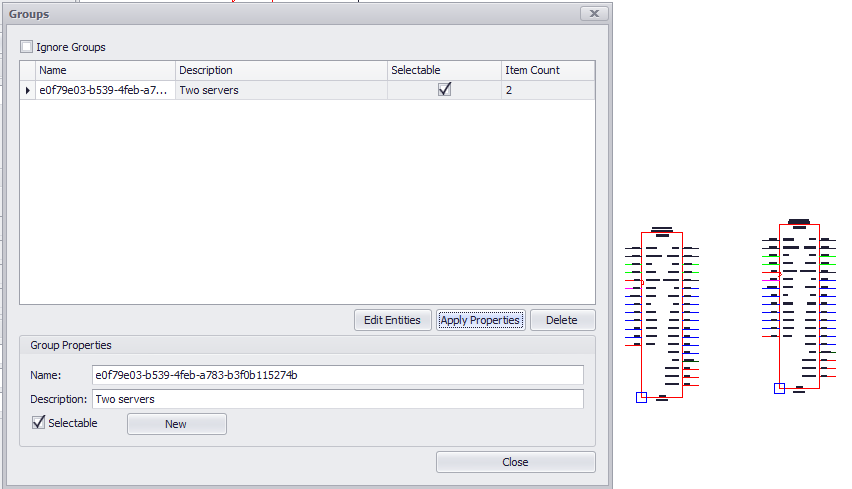

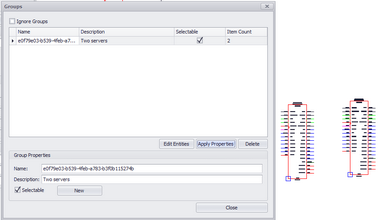

Dialog Options

•Ignore Groups - Disable grouping.

•Name - The default Group name will be a GUID. You can rename it if you like.

•Description

•Selectable - Is the group selectable as a group. If selectable = true then when one object in the group is selected all objects are selected.

•Item Count

•Edit Entities - Add or remove entities to the group.

•Apply Properties - Send the value of the Group Properties fields to the group.

•Delete - Deleting the Group does not delete the entities.

•New - New from the Group Properties.
