1.Open a plan view drawing.

2.Click Plan View Tools > Take-Offs.

3.Select the Insert check-button.

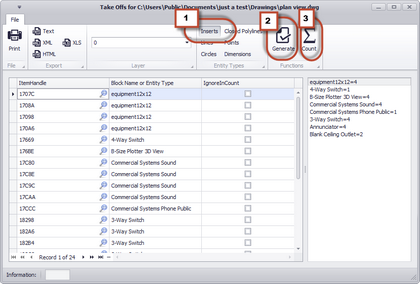

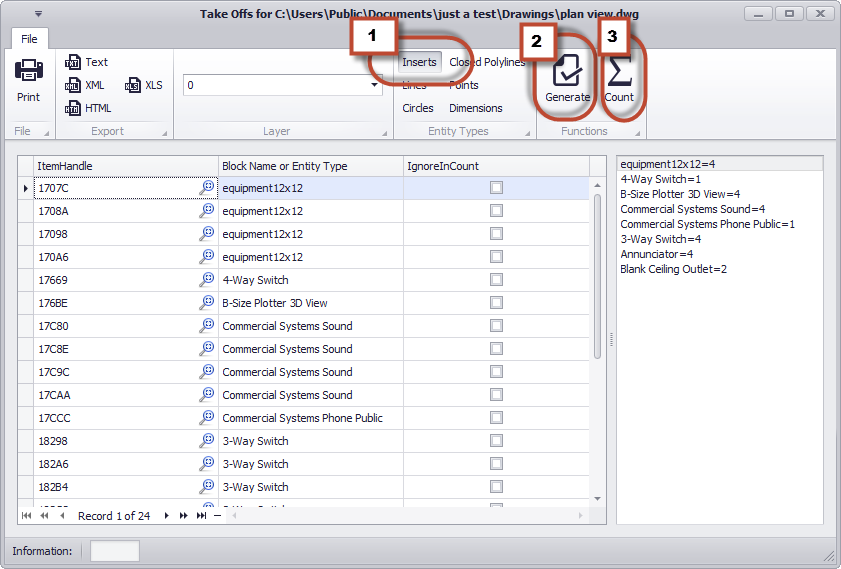

4.Then click [Generate]. This generates a list of all Inserts in the drawing.

5.Click [Count]. This counts the different inserts in the drawing. The results appear in the list on the right.





Now let's say we want to count all circles on the CEIL_SPKR layer.



1.Open a plan view drawing.

2.Click Plan View Tools > Take-Offs.

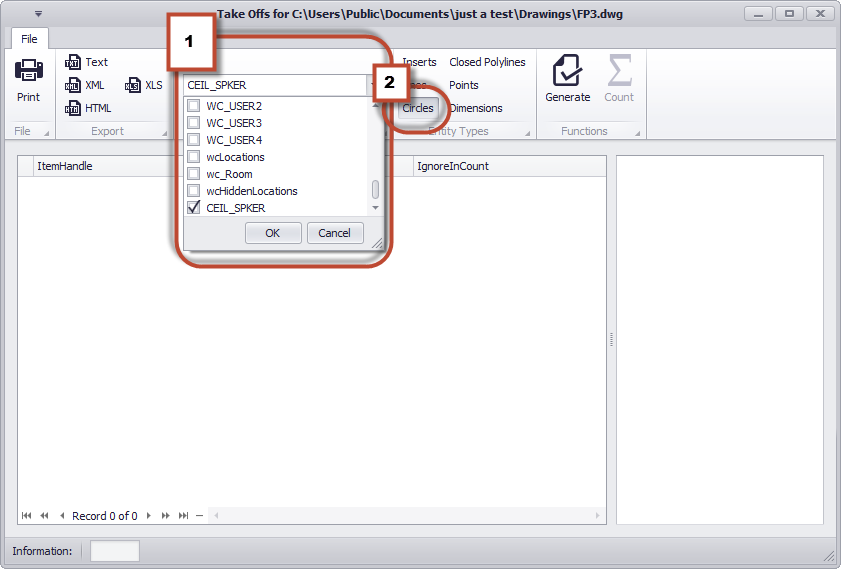

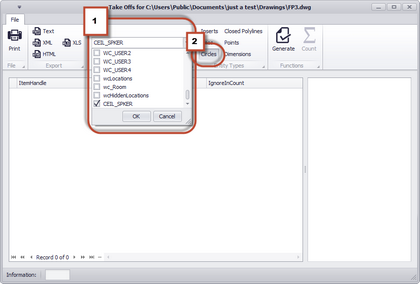

3.Select the Circles check-button, and select the Layer on which to search.

4.Click [Generate]. This produces a list of all the circle entities found on the selected layer.

5.Click [Count]. This counts them and outputs the result in the right-hand list.

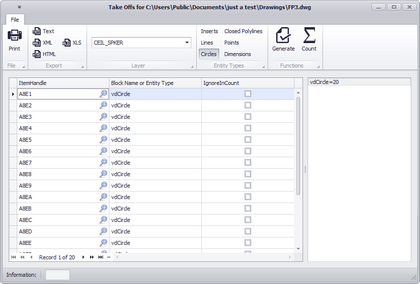

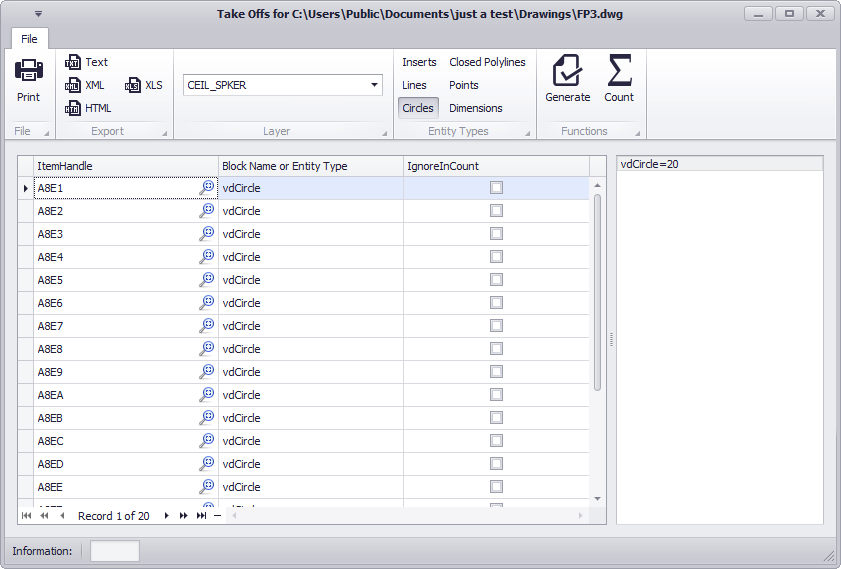

6.As you can see we have 20 circles that appear on the CEIL_SPKR layer.
