Reference > Tool Panels

View > Tool Panels > Find and Replace

Commandline: none

Explanation

Find and replace text found in any drawing and in editable fields of the project databases. The found list will tell you the context in which the searched text appears.

NOTE: found text may occur in an invisible attribute.

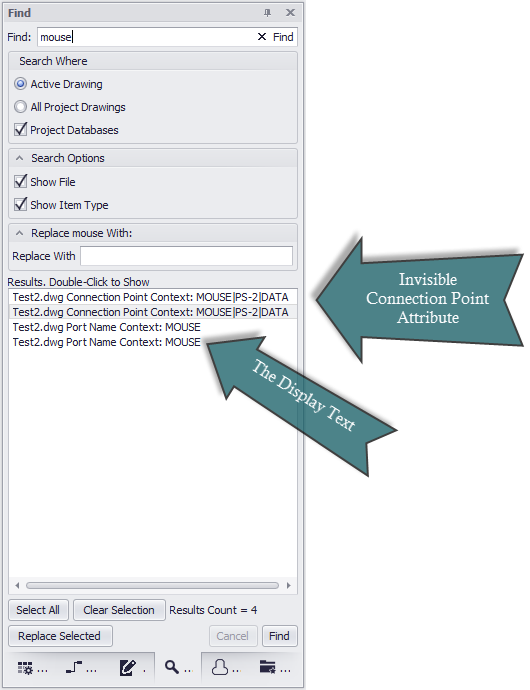

Changing a port name on a device using the Find and Replace tool requires that you change the text in the following contexts:

•The visible attribute.

•The invisible CP_IN or CP_OUT attribute string. This is a pipe delimited string that contains the name|conn|type. You must change the name portion of this.

•Any records that exist in the Project Cables table that reference that port.

Prerequisites

An active project

Tool Panel Options

•Find - The text to search for.

•[X] - Clear the Find text.

•Search Active Drawing - Only look in the active drawing.

•Search All Project Drawings - Search every project drawing.

•Show File - Show file name if any of the context in which the item is found.

•Show Item Type - Is it a text entity in a drawing or a field in a database.

•Results -

•[Select All] - Selects all items in the results window.

•[Clear Selection] - De-selects all items in the results window.

•Replace With - The text to replace the found text with.

•[Replace Selected] - Initiate the replacement.

•[Cancel] - Cancels the current search.

•[Find] - Initiate the search.
