Reference > Tool Panels > Drawing Properties

View > Tool Panels > Drawing Properties

Commandline: none

Explanation

Provides access to the drawing properties. If no selection set exists in the drawing the general document properties are presented. If a selection exists then the common properties of all items in the selection set are displayed for edit. You may also select a single item from the selection set and edit all of its properties.

Prerequisites

An open drawing.

Tool Panel Options

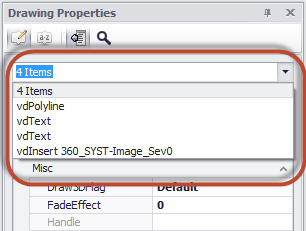

•Selected Object - This combo box displays the selected object and allows you to selected individual items from the drop down.

•Property grid - The properties displayed here will all have property editors that are specific to the entity type.

•Sort/Group/Display Descriptions/Search toolbar buttons
