Common user specific drawing environment settings.

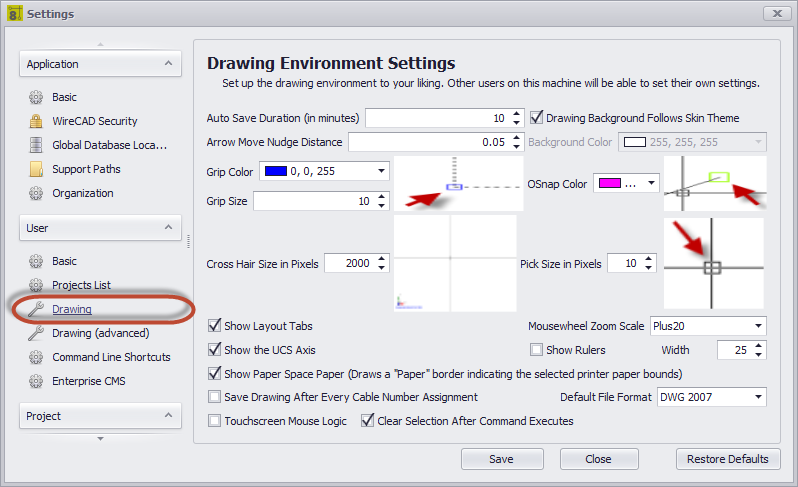

User - Drawing Panel Options

•Auto Save Duration - Sets the Auto Save Duration. Auto Save saves only drawings that are modified but not currently involved in a function.

•Arrow Move Nudge Distance - When nudging a selection how far do we move in the direction.

•Grip Color, Grip Size, Cross Hair Size

•Show UCS Axis - Shows the UCS Axis:

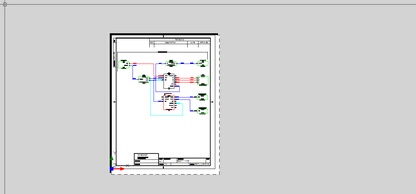

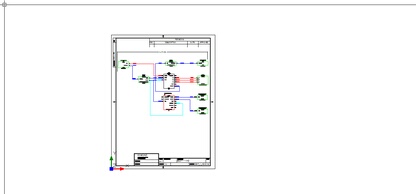

•Show Paper Space Paper - When a layout is selected, show the current page size as returned by the selected printer as a white "page."

•Save Drawing After Every Cable Number Assignment - Setting this to true is not recommended but will speed the assignment process. You are responsible then for saving the drawing to ensure drawing/database parity.

•Touchscreen Mouse Logic

•Clear Selection After Command Executes - Overrides the default behavior of leaving the selection set in tact after an operation.

•Drawing Background Follows Skin Theme, Background Color, OSnap Color

•Pick Size - Sets the pick size in pixels. The pick determines the search window aperture when clicking the cursor.
