<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > Advanced Tools Dialogs > Equipment Library > Descriptor Map

---

Database > Equipment Library [Display Preferences] Descriptor Locations

Commandline: le

Several Others



Related Topics

How To: Add Equipment to Drawings



Explanation

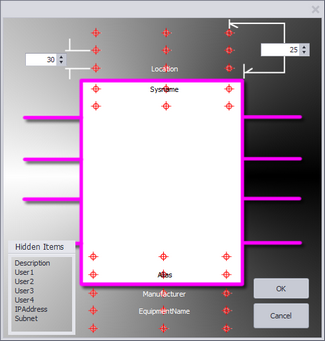

Change the locations and visibility of the various block descriptors:

•SysName

•Manufacturer

•EquipmentName

•Location

•Alias

•Description

•User1 - 4

•IPAddress

•Subnet Mask





Operation

Drag the named descriptor to the target on the map.

To hide a descriptor drag it to the Hidden Items frame.
