How To: Add Equipment to Drawings

 Previous pageReturn to chapter overviewNext page

1.Create and open a drawing.

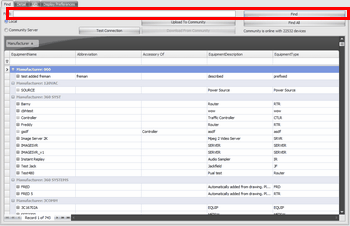

2.Find and select the equipment definition from the Equipment Library.

clip0043

3.Select the IO you want to display in the drawing

inputoutputtab

4.Select the Display mode

clip0045

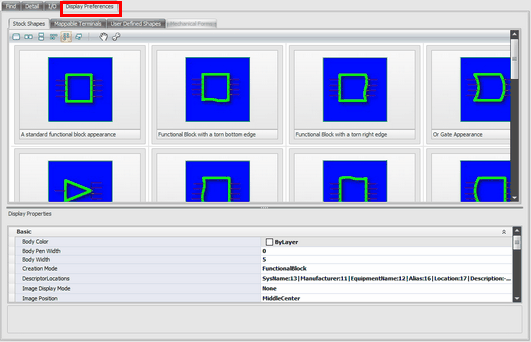

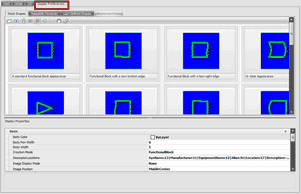

5.Select the Display Preferences. Everything is parametric. There are settings for Body Width, Pin Spacing, Color, etc.

clip0046_zoom57

6.If the Auto Preview function is not set, you may wish to click the Refresh button (either above the preview window or on the IO tab).

clip0047 orclip0048_zoom87

7.Click [Add to Drawing] (requires an active drawing).

8.Place the newly created block in the drawing. You will be able to place any number of copies. Just keep left-clicking to place. When you are done right-click and click done or click the [Enter] key.
