Menu: Advanced Tools>WireCADify>WireCADify Block

Default command line shortcut: wc

---

Requires an active drawing with a CAD block.

Adds the base WireCAD attribute set to the selected block, mapping your attribute data into our attributes if you choose.

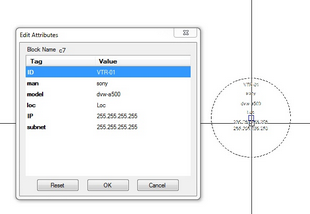

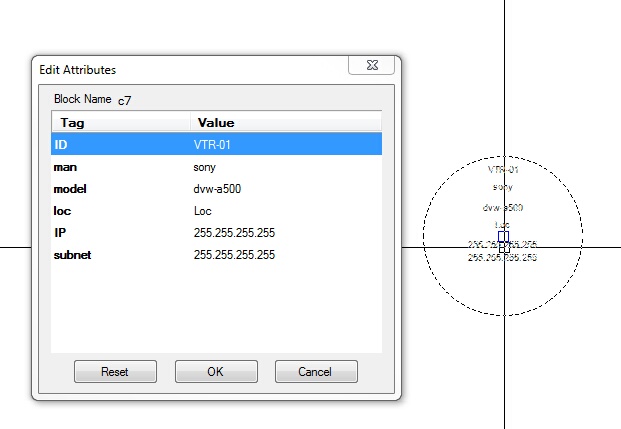

1.Open a drawing with a non-WireCAD CAD block that you want to make work with WireCAD.

2.Click Advanced Tools>WireCADify>WireCADify Block.

3.You will be prompted to select a CAD block.

4.Select your CAD block. It must be a block and not raw entities.

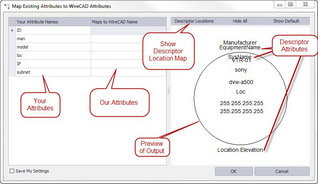

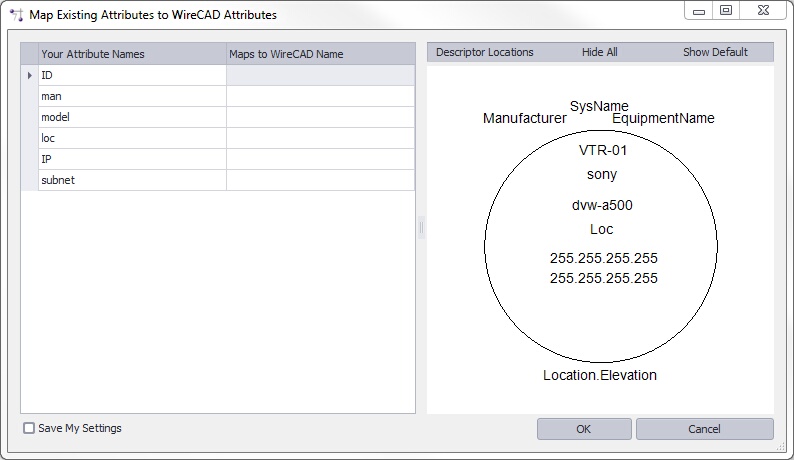

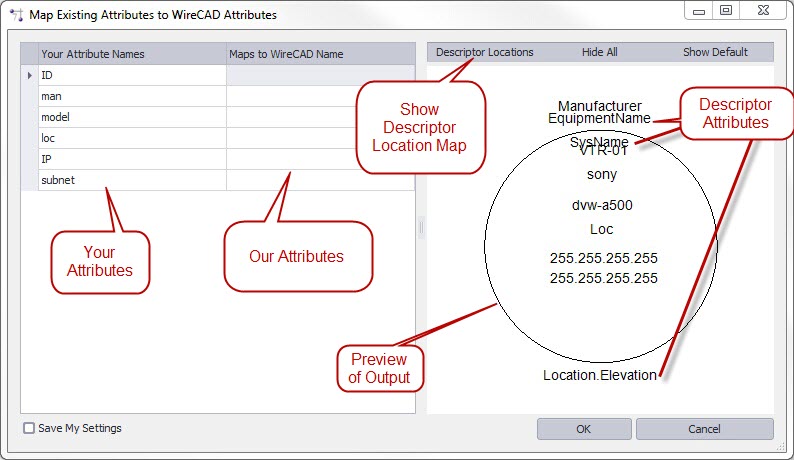

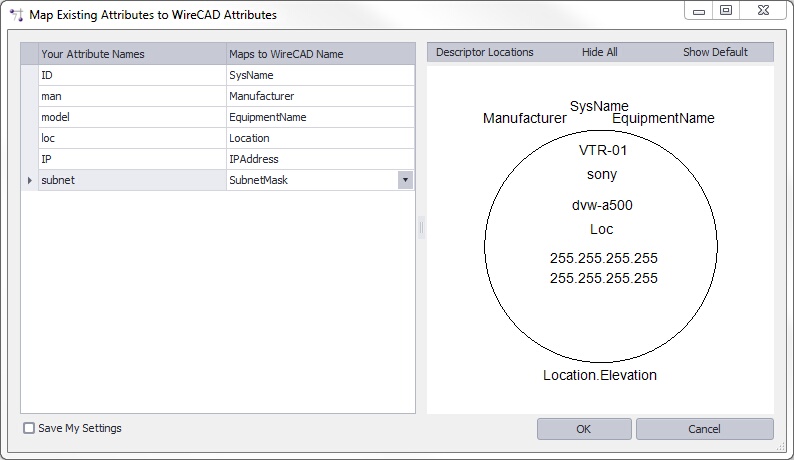

5.Map your attribute to our attributes.

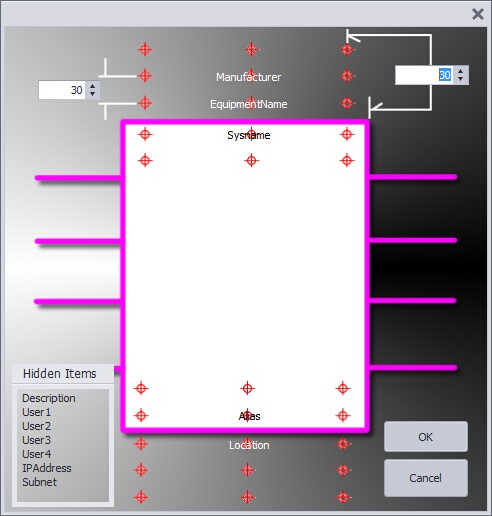

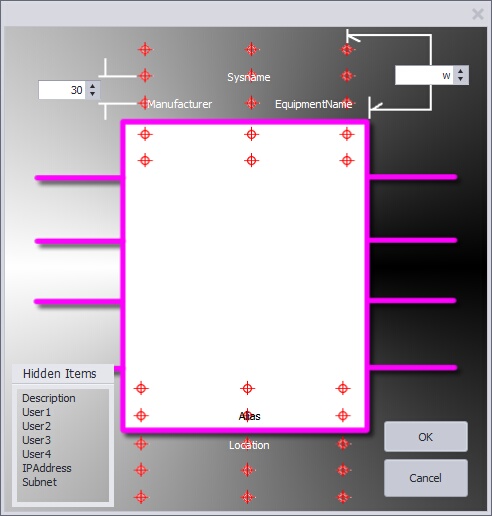

6.Select the [Descriptor Locations] button.

7.Click [OK] to do it.
