WireCAD PRO Manual > Advanced Topics > Using Your CAD Drawings With WireCAD > How To: Add a Port to an Existing CAD Block

Menu: Advanced Tools>WireCADify>Add Connection Point

Default command line shortcut: none

Related Settings:

None

Adds a connection point to the selected block.

1.Open a drawing with a WireCAD block.

2.Click Advanced Tools>WireCADify>Add Connection Point

3.You will be prompted to select a WireCAD block.

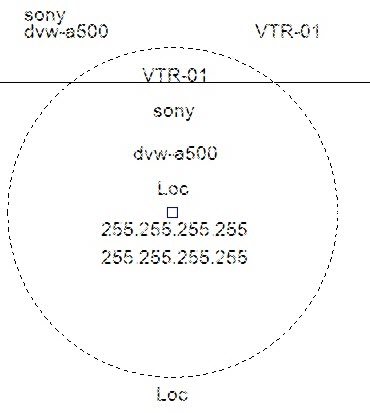

Here we have a WireCADified block

4.You will be prompted for the point at which to add the Connection Point.

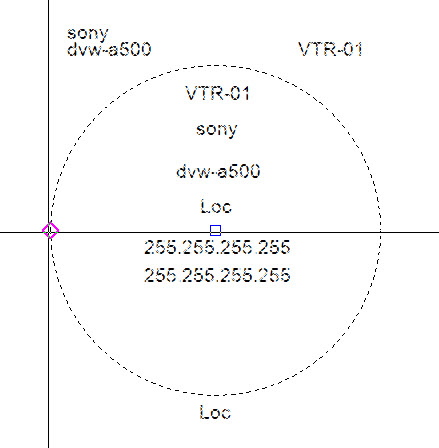

Here will will choose the arc quandrant

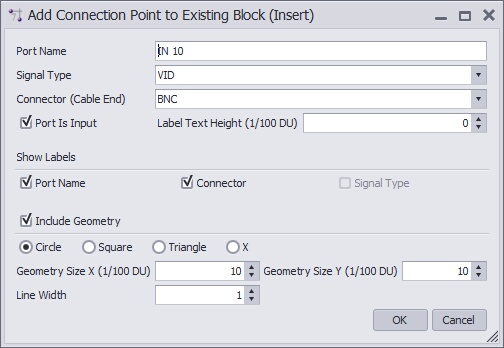

5.Enter your port info the in the dialog that is presented.

Here will will say that the port is an input called IN 10.

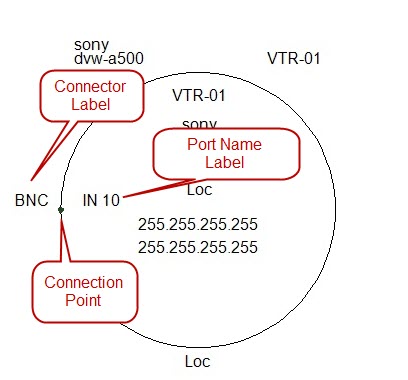

We will show the labels and include a small circle to snap to.

6.Click [OK] to finish.
