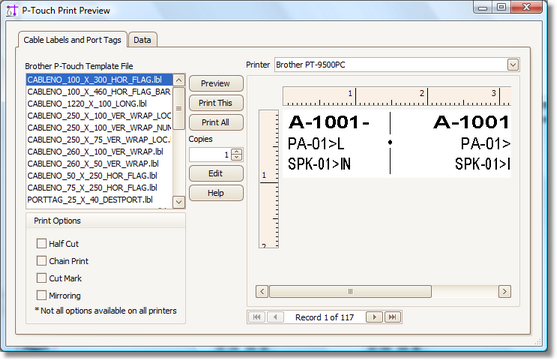

From this page you select the template file into which you will print the selected data.

Template File: listbox enumerates all *.lbl files in the {WireCAD Common App Data}\Plugins\Brother Ptouch\Templates\ folder.

<Preview>: Load the selected record into the selected template file and display it.

<Print All>: Prints the entire recordset to the printer.

<Print This>: Prints the selected record.

<Edit>: Launches the P-touch editor (if installed).

Copies: textbox: Enter the number of copies to print.

Preview: pane. Displays a preview of the selected record.

Record Selectors:

Navigate through the recordset.

Printer Options:

Half Cut: If supported on the printer, will only cut through half of the label creating a roll of labels that can be torn off in the field. This is available on the industrial series printers like the PT-9500 and is really slick.

Chain Print: No space between label prints, nor feed or cut at the end.

Cut Mark: Prints a cut mark.

Mirroring: Inverts text.

Note: the .lbl file contains the info for the printer for which it was created. If you have multiple P-touch units attached to your computer, the report will attempt to print to the unit defined in the .lbl file.
