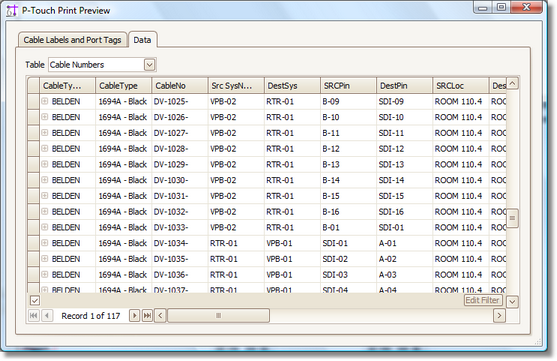

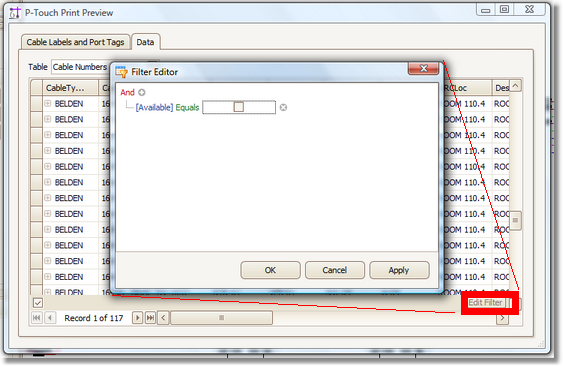

This plugin has the ability to pull from either the Project Systems database or the Project Cables database. Upon selection of the desired database, you have the ability to apply filters to narrow the selection set. These filters work like the other filters in WireCAD. Click the <Edit Filter> button and the filter dialog will be displayed; then select the field, conditional operator and value. Next click the <Apply Filter> button.

Table: Combo. Selects either the Cables database or the Systems database.

Note: the data grid is read only.
