This Step by step will guide you on exporting multiple circuits.
Note: this is different from the command Tools>Output All Selected Circuits

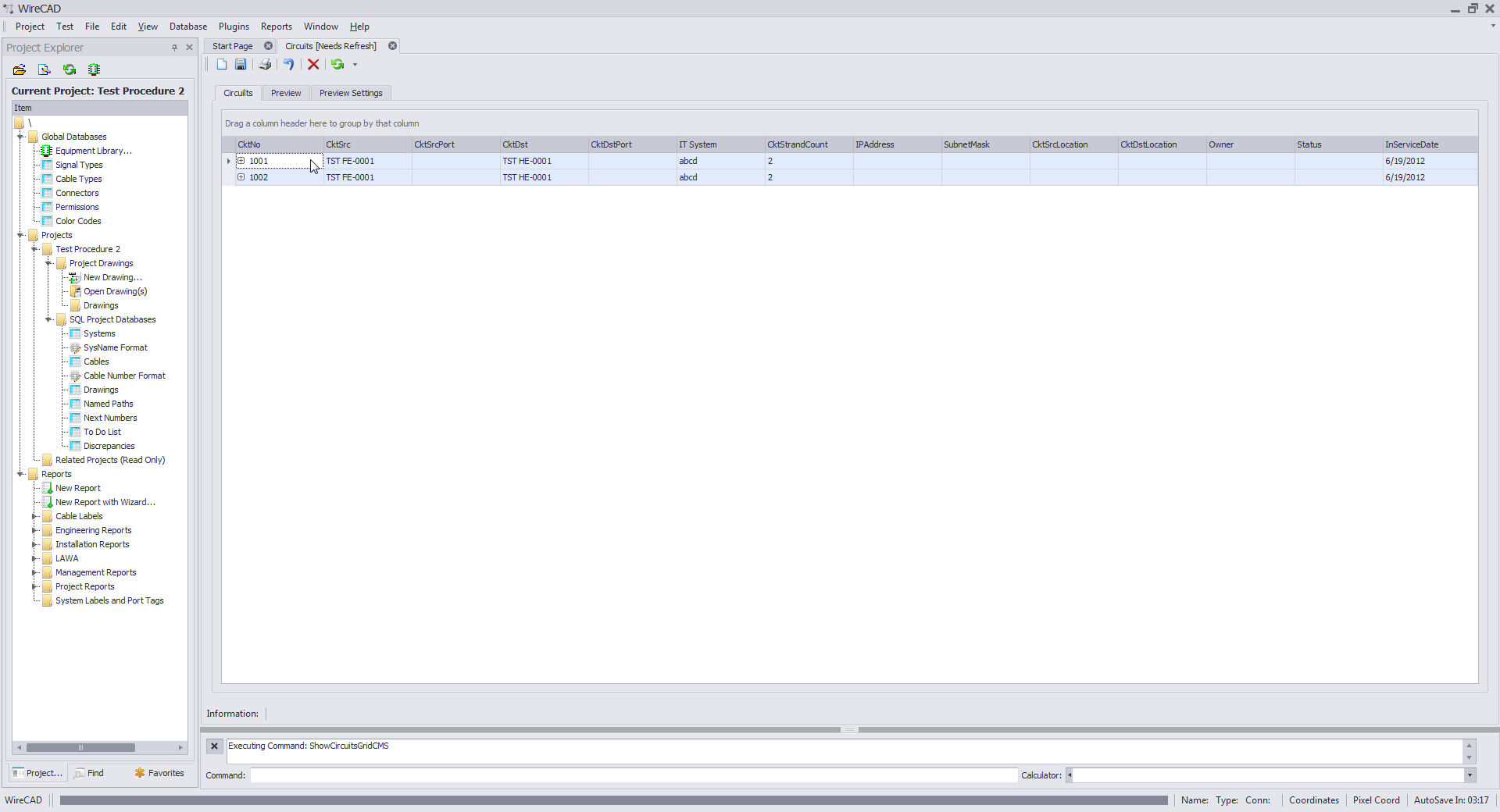

1.Enter CMSCG in the command line prompt. The Circuit Grid Window will open.

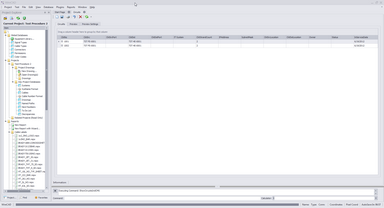

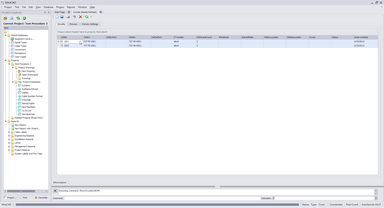

2.Select the Circuit Numbers you would like to Export. You can select multiple circuits by dragging down with your mouse clicked, by holding [Shift] and selecting a set or by holding down [CTRL] and selecting multiple records individually.

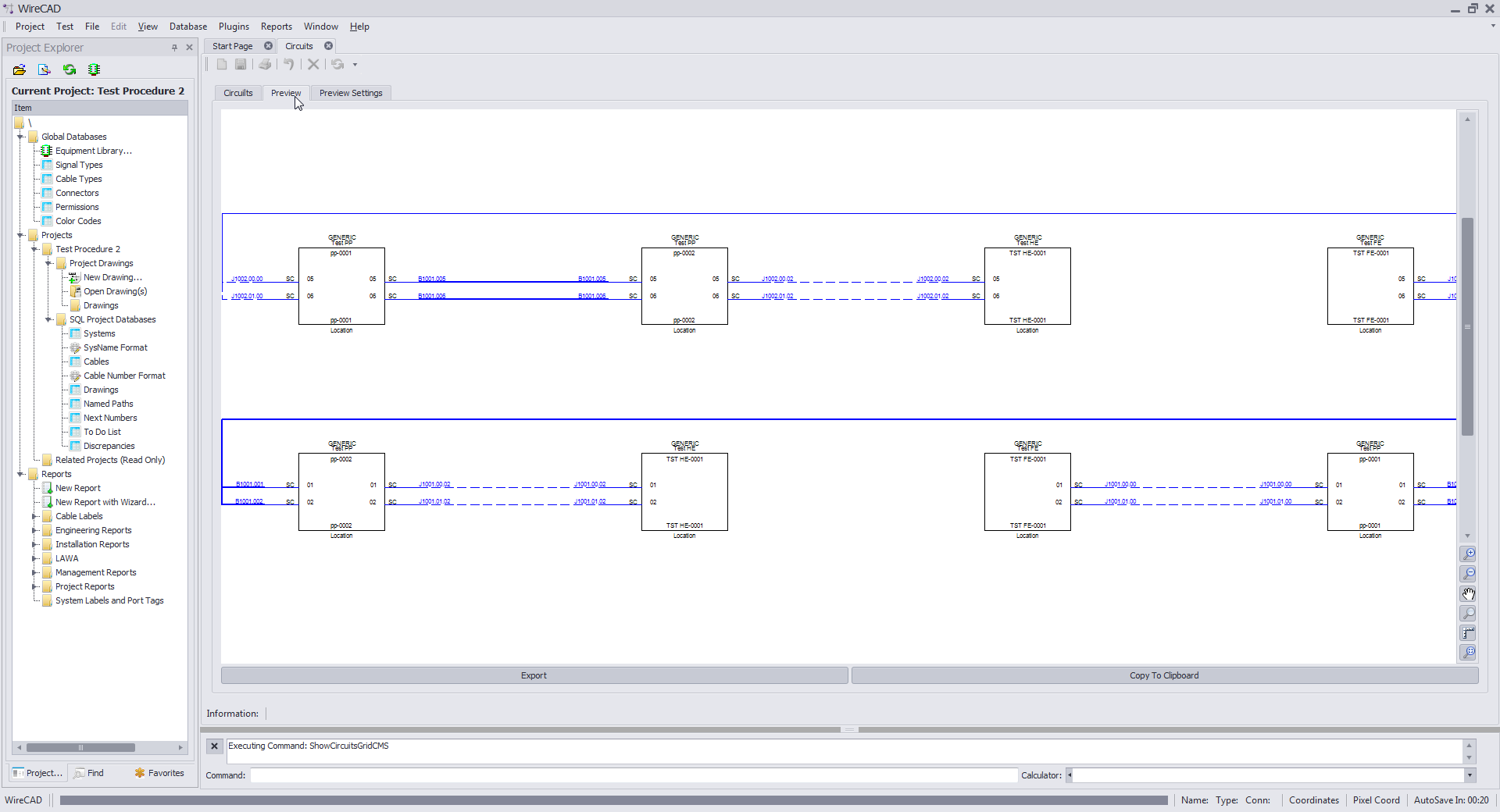

3.Select the [Preview] Tab.
4.Verify the circuits shown are the ones you would like use and click [Export]. A Windows explorer window will come up. Enter the path to export to, what you would like this file to be called and what file type you would like to export as.Note: All of these settings can be automated in the Settings Menu.
5.Click [Save]. Your exported file will now be created and placed in the location you have specified of the file type you specified in the Save As Dialog filter.
