This step by step will guide you on exporting a circuit.
1.Enter CMSCG in the command line prompt. The Circuit Grid Window will open.

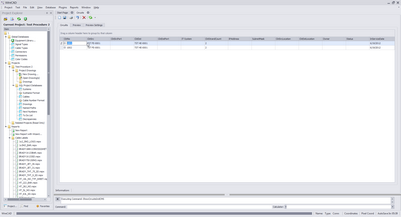

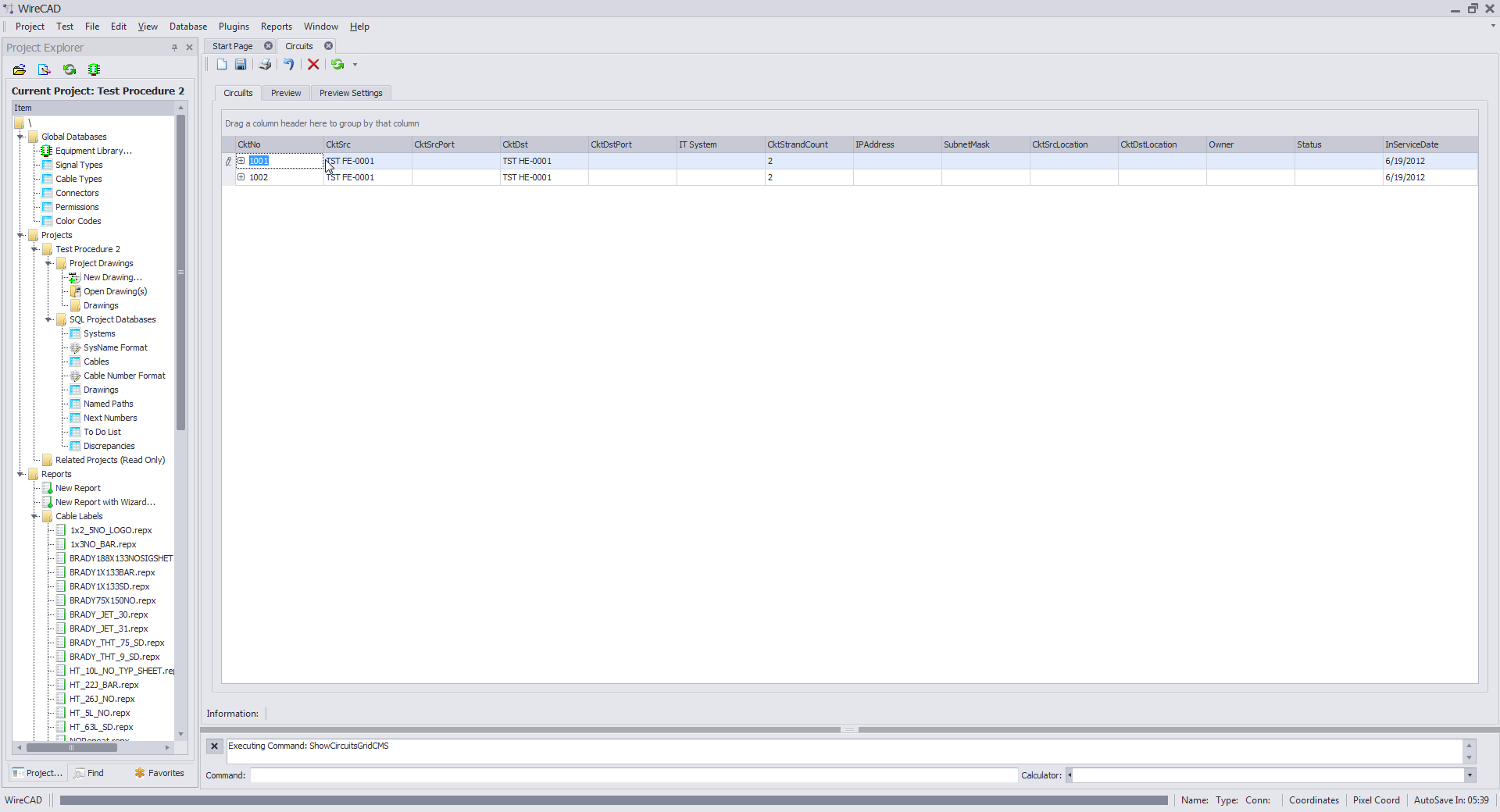

2.Select the Circuit Number you would like to Export.

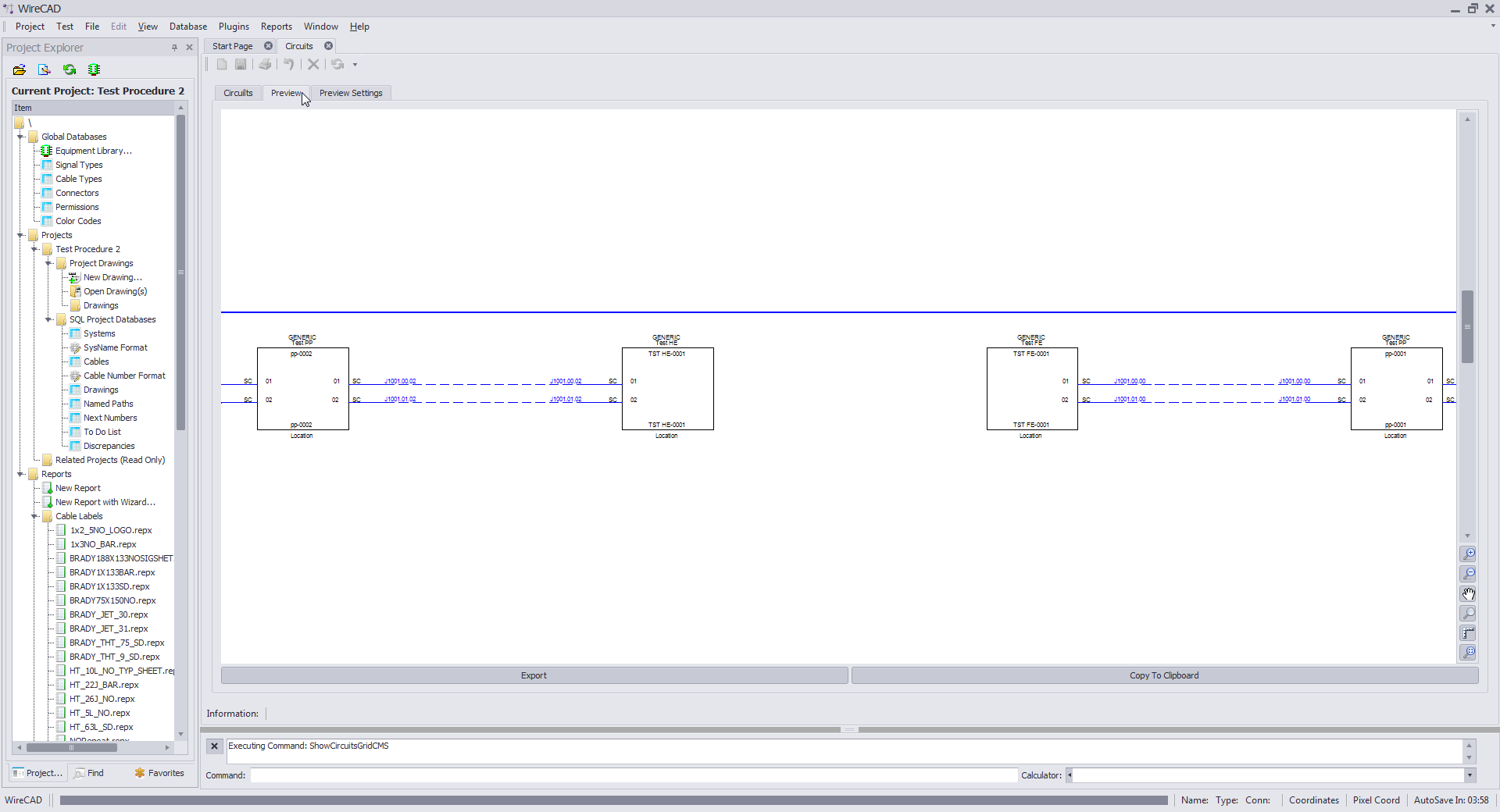

3.Select the [Preview] Tab.
4.Verify the circuit is the one you would like use and click [Export]. A Windows explorer window will come up. Enter the path to export to, what you would like this file to be called and what file type you would like to export as.Note: All of these settings can be automated in the Settings Menu.
5.Click [Save]. Your exported file will now be created and placed in the location you have specified of the file type you specified in the Save As Dialog filter.
