Drawing > PlanView and Layout Tools > Populate Cables
Commandline: popc
Explanation
This tool pulls the cables from the Cables table into the drawing. The assumption with this tool is that you will use it after you have done your functional drawings and assigned cable numbers and SysNames.
Prerequisites
| 1. | SysNamed source and destination equipment placed in the Plan View space or: |
| 2. | Source and destination Location Boundaries placed in the Plan View space. |
| 3. | Cable data in the Cables table that matches the placed equipment or locations. |
Operation
| 1. | Start the tool. |
| 2. | Select the source SysNamed equipment. |
| 3. | Select the destination SysNamed equipment. |
| 4. | Place the points in the polyline to finalize the appearance. |
Related Topics

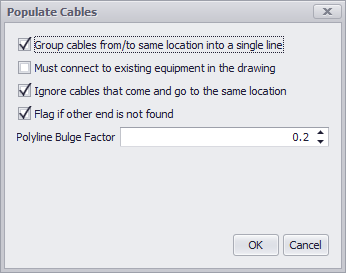

Dialog Options
Item |
Description |
|---|---|
Group Cables |
|
Must connect to equipment in the drawing |
|
Ignore cables that come and go to the same location |
|
Flag if other is is not found |
|
Polyline Bulge Factor |
