dlg_dwg_point_styles

Drawing > Drawing > Point Styles

Commandline: pointstyles

Explanation

All point entities inserted into the drawings space will render based on the settings here.

NOTE: if you are using the Rack Builder tool WireCAD uses point entities to generate the positioning grids and sets this value programmatically.

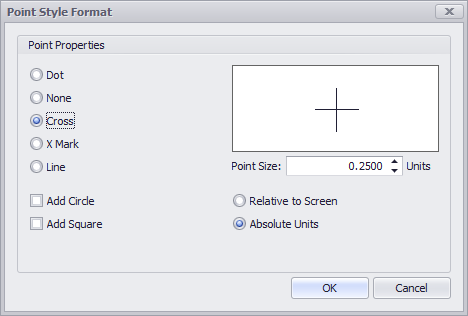

Dialog Options

Item	Description
Dot	Display as a single dot.
None	None
Cross	Cross
X Mark	X
Line	Line
Add Circle	Add a circle around the above selection.
Add Square	Add a square around the above selection.
Point Size	Set the size in units as defined
Relative/Absolute	Set the size in units as defined
