Reference > Forms > Global Data Forms

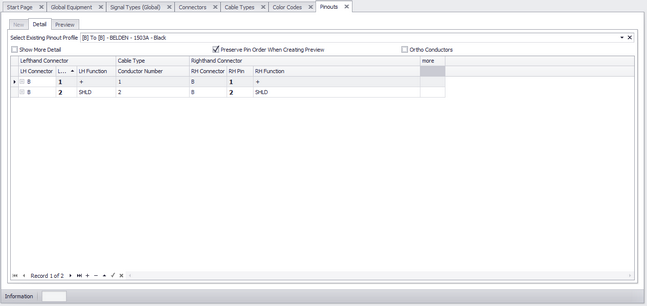

form_global_pinout_detail

Database > Pinouts

Commandline: po

Explanation

This tool provides access to the Pinouts table of the Global Equipment database. The concept of the Pinouts tool is to create a data set that describes two connectors and the conductors between them. The Cable Type data needs to have conductor level data. The data may be attached at the project level to a cable. The data can also be churned into a preview.

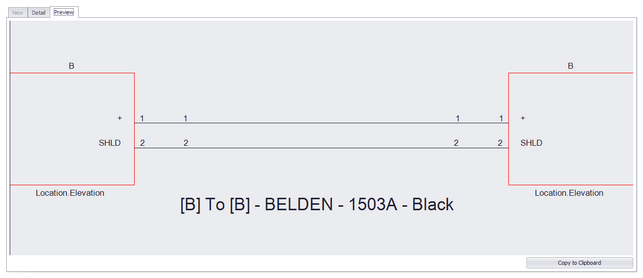

form_global_pinout_preview

Prerequisites

None

Related Topics

Grid Basics

Form Detail Tab Options

Item	Description
Select Existing Pinout Profile	Select a named pinout to fill the grid and subsequent preview.
Show More Detail	Shows more rows of data to edit.
Preserve Pin Order When Creating Preview	How is the Preview created.
Ortho Conductors	How is the Preview created.
Pinout Grid	Edit the pinout data to assign the conductors to the pins and termination methods and so on.

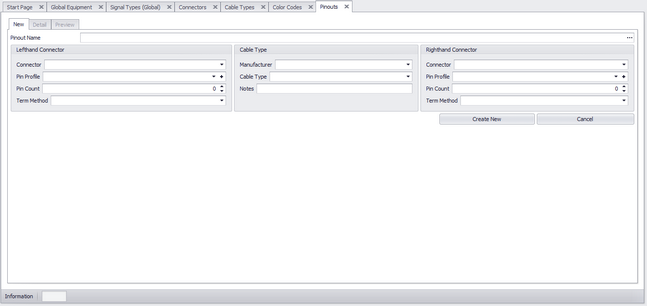

form_global_pinout_new

Clicking the New button enables the New Tab. From here you enter the overall data for the pinout. The Lefthand and Righthand connectors conductor counts, etc. Once the pinout is created you can edit the detail in the Detail tab.

Form New Tab Options

Item	Description
Lefthand Connector Info	Enter the connector type, pin profile (if any) and count.
Cable Type	Select the Cable Type. Remember this type must have conductor level data. Core Level data alone will not suffice here.
Righthand Connector Info	Enter the connector type, pin profile (if any) and count.
