Export to Visio |

|
|
Export to Visio |
|
Drawing > File > Export to Visio
Commandline: visio
Explanation
The WireCAD to Visio converter is an intelligent converter. It creates active working Visio drawings from you WireCAD drawings. What this means is that it is not just a dumb geometric import but rather entities are examined and functioning Visio entities are created. Cables in WireCAD become Visio Connectors allowing movement of blocks while keeping the wires attached.

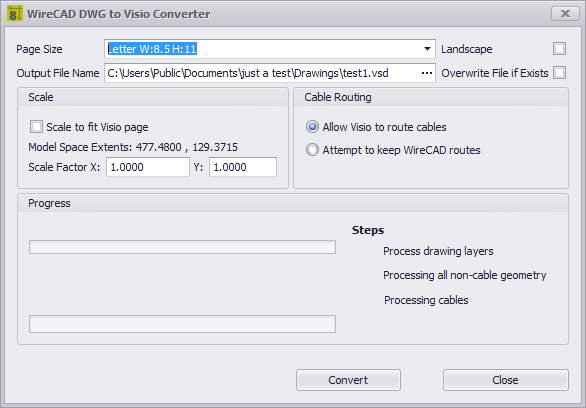

Dialog Options
Item |
Description |
Page Size |
Set the Visio page size. |
Output File Name |
Name the file |
Landscape |
Is Landscape |
Overwrite File if Exists |
|
Scale to Fit |
Fit the WireCAD dwg entities onto the selected page size. |
Scale Factor |
Manuallly scale the WireCAD entities to the Visio page size. |
Cable Routing |
Here is the magic. You can either let Vision route the cables or you can attempt to keep the appearance of your WireCAD routes. |
Convert |
Do IT! |
Close |
