Drawing > Advanced Tools > Drawing SysName Error Check
Commandline: drawingsysnameerrorcheck
Explanation
Check the drawing against the database. Checks the following:
| • | Retrieves all equipment from the drawing. |
| • | Checks the drawing SysName against the database. |
| • | If matched the record is shown normally. If orphaned or not assigned the background color will be changed. |

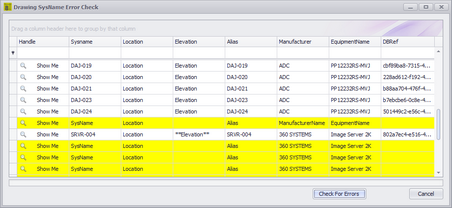

Dialog Options
Item |
Description |
Show Me |
Zooms to the selected entity |
Check for Errors |
Scans then fills the grid. |
