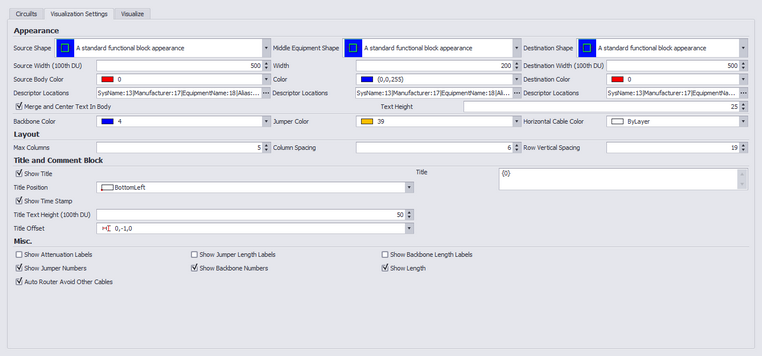

Appearance |
|
Source, Middle and Destination Shape |
Choose one of the 16 stock shapes |
Source, Middle and Destination shape Width in (100th DU) |
How wide is it |
Source, Middle and Destination shape Color |
Set the color of the shape |

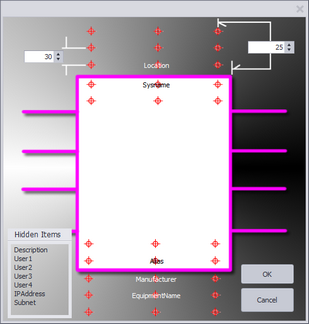

Source, Middle and Destination shape Descriptor Locations
Drag the descriptor to the location map or to the Hidden Items list to hide. |
|
Backbone Color |
Sets the color |
Jumper Color |
|
Horizontal Cable Color |
|

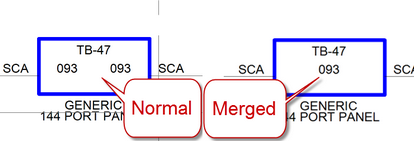

Merge and Center Text in Body |
|
Text Height |
controls the height of all text in the visualization. |
Layout |
|
Max Columns |
The maximum number of blocks placed before a new row is started below. |
Column Spacing |
The distance between blocks |
Row Spacing |
The Distance between rows |

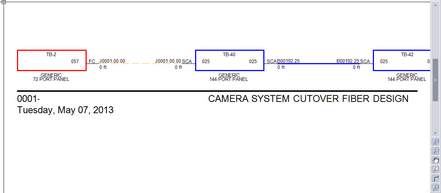

Title and Comment Block |
|
Show Title |
|
Title Position |
|
Show Time Stamp |
|
Title Text Height (100th DU) |
|
Title Offset |
|
|
|
Title |
You can type whatever you want in this field. In addition the following variables are available: {0} = Circuit Number {1} = It System |
Misc. |
|
Show Attenuation Labels |

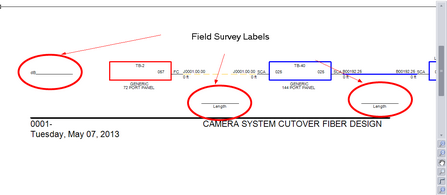

Show field survey labels in the CAD preview
|
Show Jumper Length Labels |
|
Show Backbone Length Labels |
|

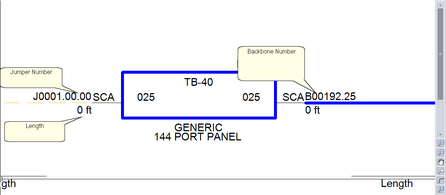

Show Jumper Numbers |
|
Show Backbone Numbers |
|
Show Length |
|
