Menu: Advanced Tools>WireCADify>WireCADify Block

Default command line shortcut: wc

Requires an active drawing with a CAD block.

Adds the base WireCAD attribute set to the selected block, mapping your attribute data into our attributes if you choose.

Applies To:

PRO, ENT

Related Settings:

None

1. Click Advanced Tools>WireCADify>WireCADify Block

You will be prompted to select a CAD block.

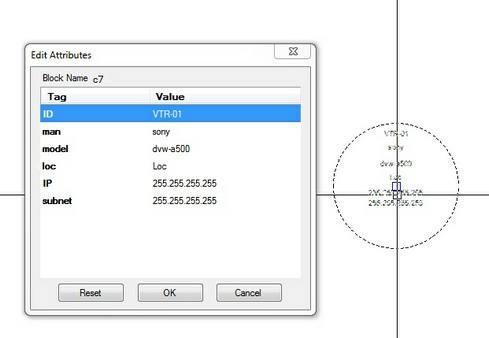

Here we have a CAD block with the displayed attributes (Yours).

2. Select your CAD block

It must be a block and not raw entities.

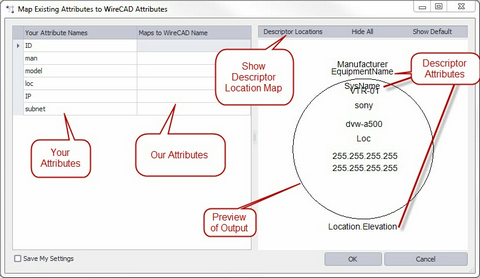

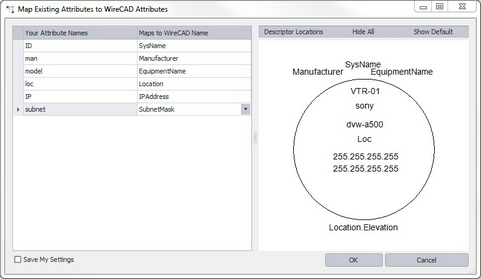

3. Map your attribute to our attributes

4. Select the [Descriptor Locations] button

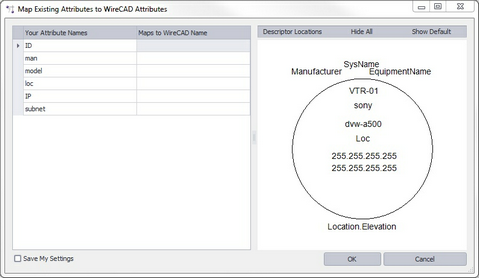

Drag the elements to reposition

5. Click [Ok] to do it.

Preview after repositioning
