Menu: Advanced Tools>WireCADify>Add Connection Point

Default command line shortcut: none

Requires an active drawing with a WireCAD block.

Adds the connection point to the selected block.

Applies To:

PRO, ENT

Related Settings:

None

Step

Explanation

1. Click Advanced Tools>WireCADify>Add Connection Point

You will be prompted to select a WireCAD block.

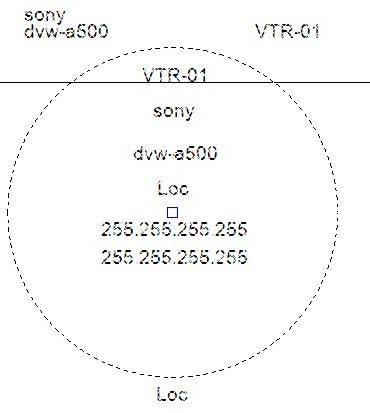

Here we have a WireCADified block

2. You will be prompted for the point at which to add the Connection Point

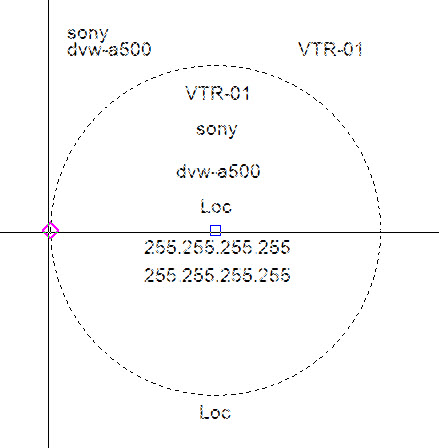

Here will will choose the arc quandrant

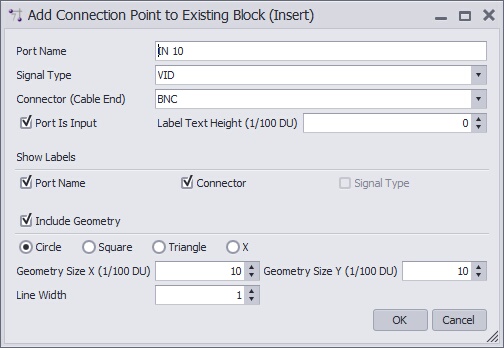

3. Enter your port info the in the dialog that is presented

Here will will say that the port is an input called IN 10.

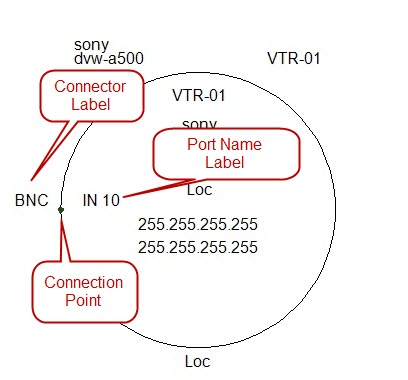

We will show the labels and include a small circle to snap to.

4. Click [OK] to finish.
