Menu: Advanced Tools>Equipment Functions>System Snapshot

Default command line shortcut: ss

The System Snapshot tool utilizes information in the Project Systems table and the Global Equipment Library and the Project Cables database to create a view of all cables attached to the selected SysName.

These details are useful for error checking and in the field as an installation aid.

Applies To:

PRO

Related Settings:

None

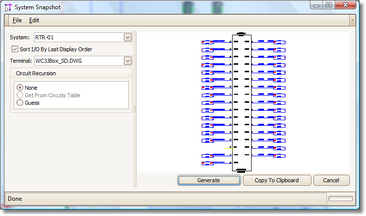

The System Snapshot dialog

System

The SysName to snapshot

Sort I/O By Last Display Order

The last display order defined in the equipment library

Terminal

The terminal to display

Circuit Recursion

None = disabled

Get From Circuits Table = Not yet implemented

Guess = search for either a direct string match on the corresponding I/O or a numeric match of the same signal type.

[Generate]

Do It!

[Copy to Clipboard]

Copies the snapshot to the clipboard for pasting into another drawing.
