Customizing WireCAD (SDK) > Registering Your Plugin

Menu: Plugins>Plugin Manager[Add/Edit PI Info]

Default command line shortcut: none

Assuming your plugin requires user input to launch it, ie it does not respond to an event. You will want to register your command with the application.

Applies To:

XLT PRO

Related Settings:

None

WireCAD uses an information file (wpi - WireCAD Plugin Info) to describe a command and to tell the application how to execute the command. WireCAD looks for these files in the c:\program files\WireCAD\bin\plugins folder.

Commands can be executed directly from the commandline or from a button on a menu bar. In order to register your command you must, at minimum, set up the commandline arguments. Toolbar buttons are optional. To edit a wpi file use the editor.

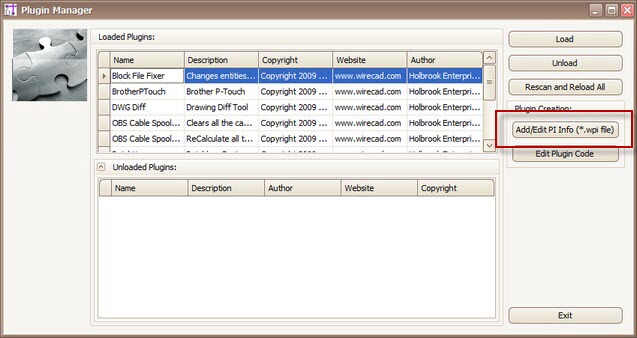

pluginmgr1

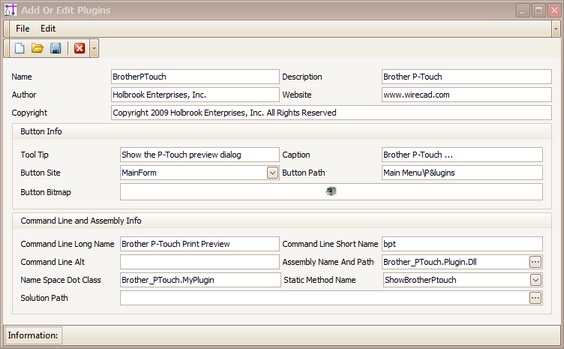

WPI File Editor

Name	Self explanatory
Description
Author
Website
Copyright
Button Info
Tool Tip	Tool tip text
Caption	The button caption
Button Site	What is the base location of the button
Button Path	Button path is the path in the menu tree of the button. Start with Main Menu and work your way down. If the menu tree does not exist it will be created. Use the & key to create accelerators. If you are using an existing path be sure to include accelerators or you will end up creating a new menu item.
Button Bitmap	16x16 bitmap
Command Line and Assembly Info
Long Name	The display name of your command
Short Name	The shortcut
Alt	Shorter less descriptive
Assembly Name	The name and path of your dll. If no path we will search the WireCAD\bin directory
Namespace Dot Class	SomeNameSpace.MyClass where your function is located
Static Method Name	The static void method name of your function. This must have the proper signature as follows: public static void YourFunctionName(WorkSpace ws) { ..... } Using the above example the Static Method Name would be: YourFunctionName NOTE: if you use the WireCAD Plugin template a static method with the proper signature will be created for you.
