Menu: Basic CAD Tools>Blocks>Insert Block Into Drawing

Default command line shortcut:

Applies To:

All Product Levels

Related Settings:

None

Switch to the Layout in which you intend to place your custom page border

Open the Insert block into Drawing dialog.

 Basic CAD Tools>Blocks>Insert  Block into Drawing

Select [From File]

Browse to the dwg that contains your custom title block in the Model Space

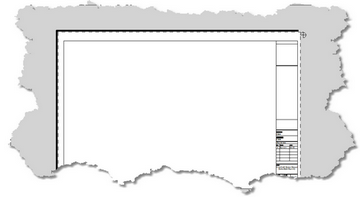

Click [OK] to place the insert into the drawing.

Now you will need to place a Viewport to the model space

Click View>New Viewport and select the logical boundaries of the viewport within the titleblock you placed earlier.

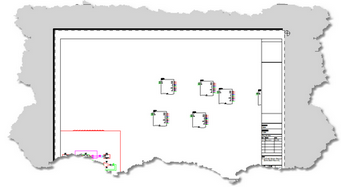

Now double-click the viewport to activate it for zooming and panning and use the mouse wheel or zoom commands to position the viewport over the model space.
