How To: Create Your Own Custom Titleblocks
| 1. | Create a new drawing with no template. |
| 2. | Draw your titleblock in Model space scaling it 1:1 with your printed page size, ie an 11x17 page border would be 11x17 minus your margins. |

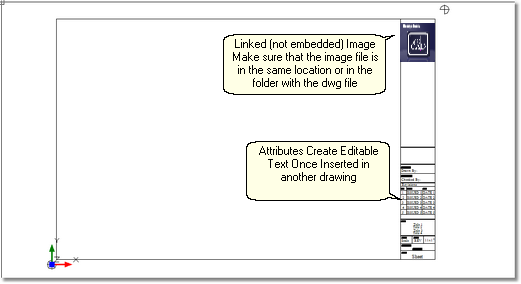

| 3. | Place any images and attribute definitions. |
| 4. | Save the drawing. |
| 5. | Follow the steps here for placing your title block drawing in any other drawing. |
