Mirror

Previous pageReturn to chapter overviewNext page

Description

With mirror command you can create the symmetrical of one or more objects reflected by an axis defined by the user.

First you have to select the objects you want to mirror. Then you have to set the axis , by setting the first point of mirror line and then the second. At this point you have to choose if the source ojects will be deleted or not.

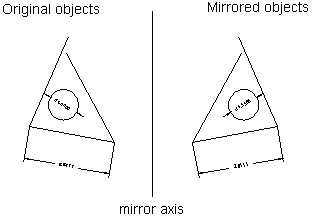

                                                  mirror



Remarks
