Fillet All Cables

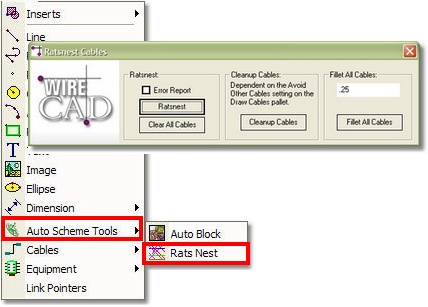

Menu: Tools>Auto Scheme Tools>Rats Nest ~ <Fillet All Cables>

Default keyboard shortcut: None

Function:

Applies a fillet of the specified distance to all cables in a drawing.

If the vertex to vertex distance of any segment of the cable Polyline cannot accommodate the fillet distance the fillet will not be added.
