Extend

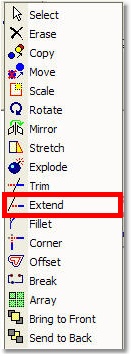

Menu: Modify>Extend
Default Keyboard Shortcut: MX
With Extend command you can extend lines, arcs, Polylines until they intersect with some other object which is used as the limit of the extension.
First, select the objects that define the limits of the extension. Then you have to choose a point on an object that you want to extend.
In the example below we will extend the Polylines and the arc to meet the diagonal line.

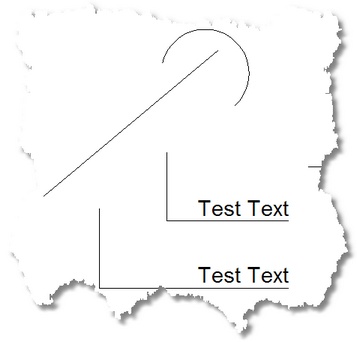

Before Extend

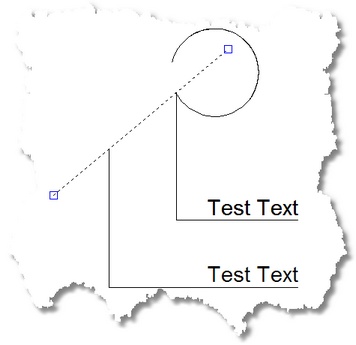

After Extend
|
After you start the command, follow the Command Line prompts to complete the command. Escape or right click to exit. If the object you want to extend does not intersect with above objects then nothing will happen. |
