Plugin:Favorites

Command Line Shortcut: none User Permissions Level: Any Product Level: All A handy way to keep track of your favorite blocks

---

---

THIS PAGE IS INCOMPLETE PLEASE ADD IMAGES AND SUPPORTING TEXT

---

DO NOT USE THIS PLUGIN UNLESS YOU HAVE INSTALLED 6.1.0.1590 OR HIGHER

This plugin allows you to store your favorite blocks in one of three locations.

1. Your Favorites - this stores your blocks with your user profile in this machine.
2. Project Favorites - stored in the current project folder.
3. Global Favorites - stored in the %BLOCKS% support path.

Usage

Saving Favorites

1. Select block or blocks to save as favorites.
2. Right-click and select [Add to Favorites].

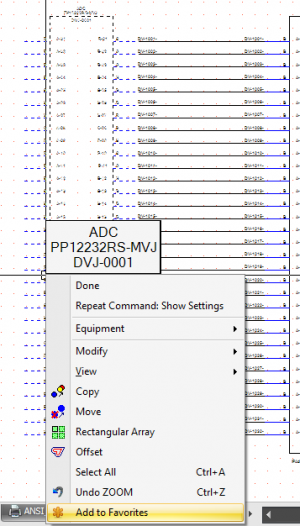

   Save Favorite Block(s)
3. Select Favorites save location(s).

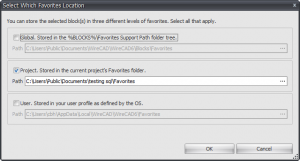

   Save Locations
4. Set whether you want the selection to be written out as one block or broken into individual blocks.

Using Favorites

From the Favorites Tool Panel you can manage the saved blocks: move, rename and delete.
To place a block in the current drawing double-click the item then move your cursor into the drawing and click to place the block.

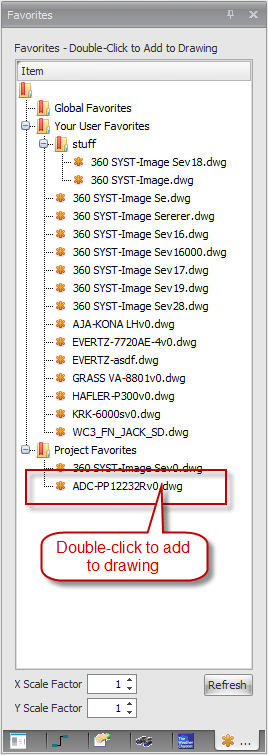

Favorites Tool Panel
