It is not within the scope of this manual to provide an in depth discussion of SQL Server. We will touch on the basics required for use with WireCAD. Basics

The WireCAD distribution includes SQL Server database files for the Global Equipment database. You will need to attach these to the the running server. You will then configure WireCAD to look at the SQL Server for the Global Equipment database. WireCAD projects will create a new database (catalog) for every new project. You will need to set up permissions for each user to allow them dbcreator privileges. This is the default for localhosts but not remote servers.

There is no further requirement to attach databases once the Global Equipment database.

SQL Server can be set up on a server or on a local machine.

Where to Download SQL Server

WireCAD requires a minimum of SQL Server 2005 (will also work with later versions) and can use the Express versions which can be found here:

https://www.microsoft.com/en-us/download/details.aspx?id=43351
Download either: SQLEXPR_x64_ENU.exe or

SQLEXPR_x86_ENU.exe

Be sure to download SQL Server Management Studio Express as well. Both are free.
On the same page download:

SQLManagementStudio_x64_ENU.exe or

SQLManagementStudio_x86_ENU.exe

SQL Server does not provide a graphical user interface so you will want to download the management studio listed above.

Note: If you are installing SQL Server Management Studio on Windows 7 64bit, please see specific instructions at the bottom of the page.

Setting Up the WireCAD Global Databases on SQL Server

Step	Description
Install SQL Server. You will be prompted for an instance name. Instance names allow you to have multiple SQL Servers running on the same machine. In addition you will be prompted for a security mode (Windows or SQL), Windows uses your Windows users and groups, SQL ignores these and allows you to manages different users and groups from within SQL Server.	I recommend using Windows security if you are installing on a local machine. If you are installing on a server select SQL security. You will then need to define a default WireCAD user that all WireCAD users will log in under.
Install SQL Server Management Studio(SQLSMS).
Launch SQLSMS and log in to the server. If the server is on your local machine you can use the shorthand .\INSTANCENAME for the host.

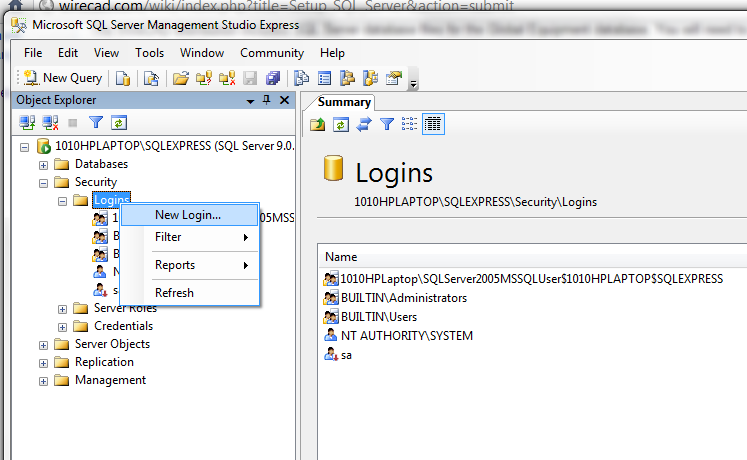

Click the Security Node and Add Login if you selected SQL Security	---- Note: We recommend that you configure SQL Server for SQL authentication and that you create a single login for all WireCAD users. We have found this to require the least amount of administration.

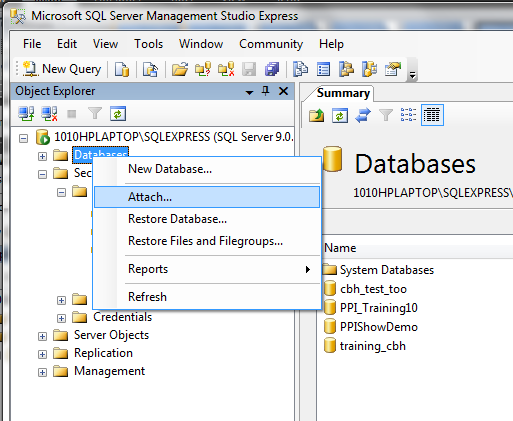

Next right-click the instance name in the Object Browser and click Attach Database

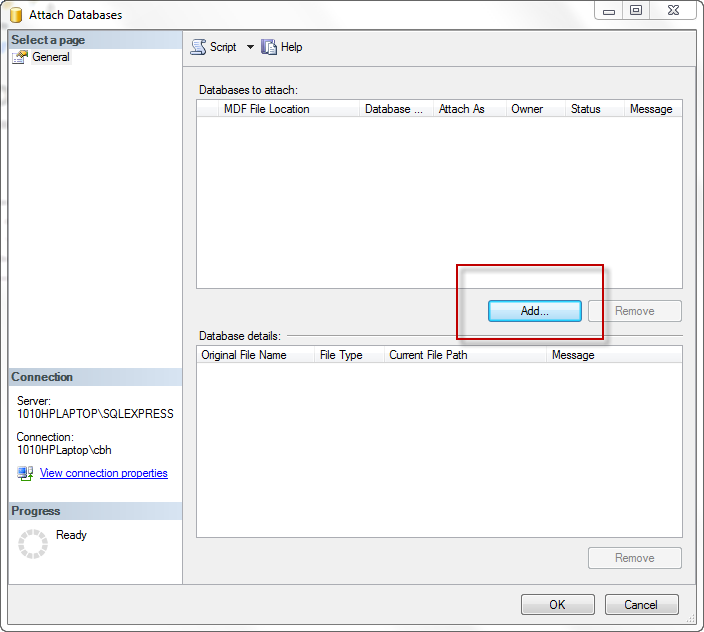

Attach The WireCAD Global Equipment Database	---- Note: The following assumes that you are installing WireCAD on a local machine. If you are installing on a server you will want to copy the global database files to the server before you attach them to the server. Click the [Add] button on the Attach Databases form and browse to: XP: C:\Documents and Settings\All Users\Shared Docs\WireCAD\WireCADx\WireCAD_Global_Equipment.MDF VISTA/7: Public\Public Documents\WireCAD\WireCADx\WireCAD_Global_Equipment.MDF The form will add WireCAD_Global_Equipment_log.LDF file automatically. You will need [Remove] that record. Click [OK] to attach the database.

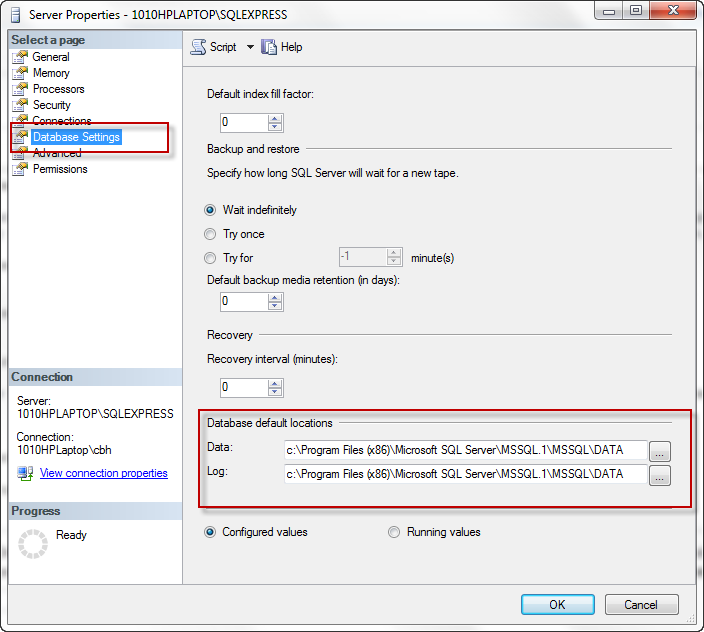

Change the default file save location.	Note: MS SQL Server will place database files in the C:\Program Files\MSSQL Server directories by default. This is not good practice as most backup software ignores the Program Files directory. To remedy this, right-click the Server Name in the Object Explorer and click Properties. Under the Database Settings node modify the Default Database Locations settings.
You will now need to configure each WireCAD client to look at the SQL Server	Launch WireCAD. ClickProject>Application Setup and follow the steps for SQL Server.

Specific Instructions For Installing SQL Management Studio On Windows 7 64bit

Step	Description
1. Place your SQL Server Management Studio Installer in your user downloads folder. Example:My Computer>(Your Hard Drive)>Users>(your username)>downloads	You can place this installer in a different folder but you will need to know the FULL path to find this. Example: C:\Users\BobsPC\My Documents\Applications\........
2. Once your installer/exe is placed where you would like it, rename it to something simple. Example:SQL Management or Management Studio	You don't have to rename however it will help simplify things in the next couple steps.

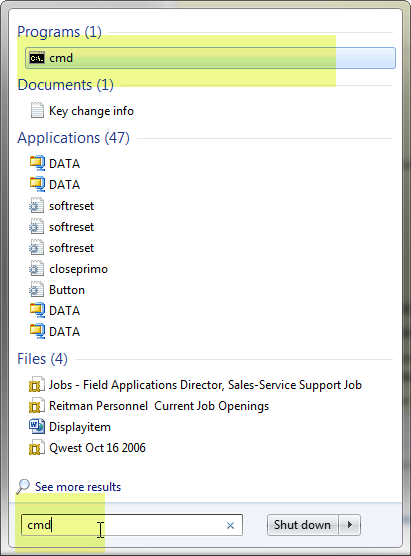

3. Click the "Start" button and type CMD in the search bar.	At the top of the search window, you should see the CMD Icon under the programs tree.

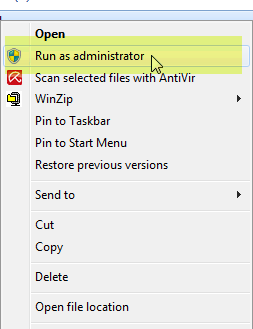

4. RIGHT CLICK AND RUN AS ADMINISTRATOR	It is very important to run as an administrator to complete the install successfully.
5. With the command prompt open, type the Full path for your installer including the file name. Example: C:\Users\BobsPC\Downloads\SQLMANAGMENT.msi	Regardless of what you rename the file to, the file extension will remain .msi and you MUST put it in the command prompt. You also need to make sure there are no spaces in your file name.
6. Press enter and if you have typed the folder path correctly, the installer will run as intended.	If you receive an error in the CMD prompt, you will need to double check your folder path and try again.
