Line 28: Line 28:

| Template Drawings || Default for VistaDB '''C:\Users\Public\Documents\WireCAD\WireCAD6\Template Drawings''' [[File:Template Drawings Path.png|thumb|Default Template Drawings Path]]

| Template Drawings || Default for VistaDB '''C:\Users\Public\Documents\WireCAD\WireCAD6\Template Drawings''' [[File:Template Drawings Path.png|thumb|Default Template Drawings Path]]

|-

|-
−
| Use SQL Server Project Databases By Default || If you have set up a SQL server database during the initial WireCAD setup, this will be checked and will force the program to use the SQL server project databases as your default databases. [[File:SQL Server Default.png|thumb|Use SQL Server Project Databases By Default]]
+
| Reports || Default for VistaDB '''C:\Users\Public\Documents\WireCAD\WireCAD6\Reports''' [[File:Reports Path.png|thumb|Reports Path]]

|-

|-
−
| Users (mere mortals)Can Select Project Database Mode || This will allow any WireCAD user to select which project database is used without requiring administrative privileges. [[File:Mere Mortals.png|thumb|Users (mere mortals) Can Select Project Database Mode]]
+
| Default New Project Location || C:\Users\Public\Documents [[File:New Project Path.png|thumb|Default New Project Location]]


|}

|}
 +
 +
These support paths are used as variables in equipment definition external file paths. This allows external files to be moved or reside in OS independent paths. A typica path looks like this: %BLOCKS%\folder\filename.ext w here %BLOCKS5 will be replaced by the program with the path above.

Revision as of 17:31, 7 November 2011

Command Line Shortcut: np

User Permissions Level: All
Product Level: All

This will allow you to define where WireCAD will search to find items used in your drawings.


Before You Start

To access the basic application settings CLICK Project>Settings>Support Paths.


Basic Application Settings

What we expect to find Where we expect to find it.
Blocks %BLOCKS% Default for VistaDB is C:\Users\Public\Documents\WireCAD\WireCAD6\Blocks
Default Blocks Path
Images %IMAGES% Default for VistaDB is C:\Users\Public\Documents\WireCAD\WireCAD6\Blocks
Default Images Path
Documents %DOCUMENTS% Default for VistaDB is C:\Users\Public\Documents\WireCAD\WireCAD6\Documents
Default Documents Path
Icons %ICONS% Default for VistaDB C:\Users\Public\Documents\WireCAD\WireCAD6\Icons
Default Icons Path
Template Drawings Default for VistaDB C:\Users\Public\Documents\WireCAD\WireCAD6\Template Drawings
Default Template Drawings Path

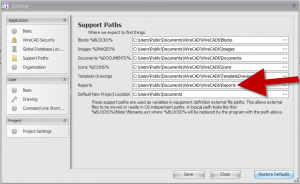

Reports Default for VistaDB C:\Users\Public\Documents\WireCAD\WireCAD6\Reports
Reports Path

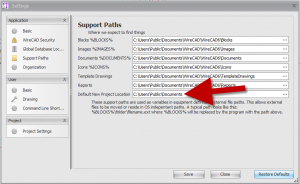

Default New Project Location C:\Users\Public\Documents
Default New Project Location

These support paths are used as variables in equipment definition external file paths. This allows external files to be moved or reside in OS independent paths. A typica path looks like this: %BLOCKS%\folder\filename.ext w here %BLOCKS5 will be replaced by the program with the path above.
